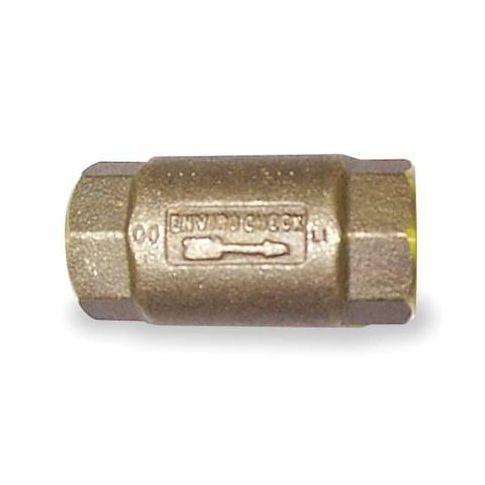

1-1/2" FNPT Lead Free Brass Spring Check Valve MPN:4033E
Free Shipping
In Stock
The Campbell 1-1/2in FNPT Lead Free Brass Spring Check Valve is a reliable and efficient solution for various industrial and commercial applications. Its inline spring design allows for smooth flow and easy installation, while its lead-free brass construction ensures compliance with environmental regulations. Suitable for use in water and steam systems, this valve features a cracking pressure of 0.5 psi and can withstand pressures up to 400 psi. Its horizontal and vertical mounting options make it versatile for use in a range of settings, including plumbing, HVAC, and industrial process control systems.
Top product features:
- 1-1/2in FNPT Lead Free Brass Spring Check Valve has a single flow design allowing for inline installation.
- The valve features a spring-loaded mechanism that provides a consistent cracking pressure of 0.5 psi.
- The valve's body and seat are made of durable brass and bronze materials, respectively, for long-lasting performance.
Top product applications:
- Water Treatment Systems
- Steam Traps
- Hydraulic Systems
The CAMPBELL 4033E is a 1-1/2 in spring check valve with an inline body and FNPT x FNPT connections. It uses a spring-loaded poppet to allow flow in one direction and close when flow stops or reverses and is intended to reduce reverse flow in general-purpose water systems. The lead-free brass body, bronze seat, and Buna-N/Nitrile sealing materials are rated for water service up to 400 psi and 180 Degrees F.
Key Features:
- 1-1/2 in nominal valve size with 1-1/2 in female NPT connections on both ends
- Inline spring design with poppet check mechanism
- Lead-free brass body with 302 stainless steel spring and check mechanism material
- For water service
- Cracking pressure: 0.5 psi
- Flow rate: 25 gpm
- Cv: 20
- Maximum pressure: 400 psi
- Operating temperature range: 35 Degrees F to 180 Degrees F
- Mounting orientation: horizontal or vertical
- Seat material: bronze
- Seal material: Buna-N/Nitrile
- NSF 61
- ANSI B1.20.1
- Overall size: 4 in L x 2-1/2 in H x 2-1/2 in W
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 2.50
- Package Height: 2.50
- Package Weight: 2.50
