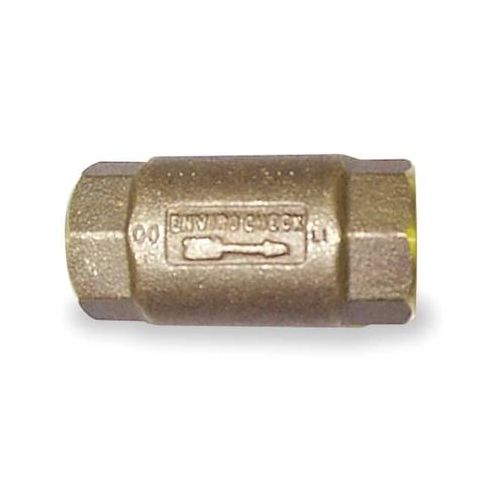

3/4" FNPT Lead Free Brass Spring Check Valve MPN:4030E
Free Shipping
In Stock
The 3/4in FNPT Lead Free Brass Spring Check Valve from Campbell is a reliable and efficient solution for various applications. This inline spring check valve is designed for use in horizontal and vertical positions, ensuring consistent flow control and minimizing backflow. Made with lead-free brass and featuring a stainless steel spring, this valve provides excellent durability and resistance to corrosion. Suitable for use in water and steam systems, it can handle pressures up to 400 psi and temperatures between 35°F and 180°F. Ideal for use in residential, commercial, and industrial settings, this valve is a great choice for plumbers, contractors, and facility managers.
Top product features:
- Lead Free Brass Construction
- Inline Spring Mechanism
- Nitrile Seal Material
Top product applications:
- Water Heater Applications
- Plumbing and Hydronics
- HVAC Systems
CAMPBELL 4030E is a 3/4 in spring check valve with an inline body and FNPT x FNPT connections. It uses a spring-loaded poppet check mechanism for one-direction water flow in general purpose water systems. The lead-free brass body, bronze seat, and Buna-N seal are rated for 400 psi maximum operating pressure and temperatures from 35 Degrees F to 180 Degrees F.
Key Features:
- Valve type: Spring check valve with inline spring design and poppet mechanism
- Connection size and type: 3/4 in FNPT x FNPT with female NPT connections on both ends
- Body material: Lead-free brass
- Media: Water
- Cracking pressure: 0.5 psi
- Flow rating: 13 gpm
- Cv: 5
- Pressure rating: 400 psi maximum operating pressure
- Temperature range: 35 Degrees F to 180 Degrees F
- Mounting orientation: Horizontal or vertical
- Seat material: Bronze
- Seal material: Buna-N
- Spring and check mechanism material: 302 stainless steel
- NSF certification: NSF 61
- Standards: ASTM B62
- Overall size: 2.75 in L x 1.5 in H x 1.5 in W
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.60
- Package Width: 1.50
- Package Height: 3.60
- Package Weight: 0.60
