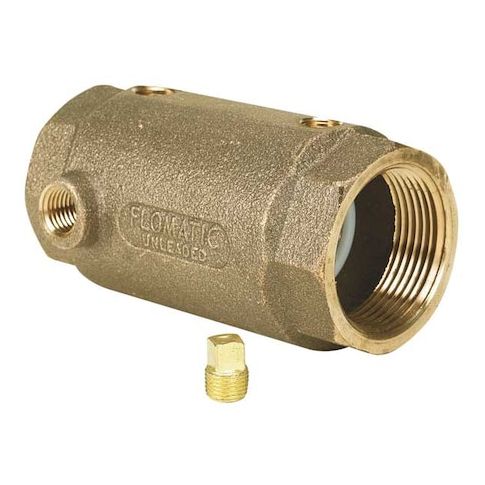

1-1/4" FNPT Lead Free Brass Spring Check Valve MPN:4062EVFD
Free Shipping
In Stock
The Campbell 1-1/4in FNPT Lead Free Brass Spring Check Valve is a reliable and durable solution for various applications. Its inline spring design allows for efficient flow control, while the brass body and bronze seat provide corrosion resistance. Suitable for use in water and steam systems, this valve is ideal for residential and commercial plumbing, irrigation, and HVAC applications. The valve's lead-free design ensures compliance with industry regulations, and its high-pressure rating makes it suitable for demanding systems. With a flow rate of 23 gpm, this valve is a versatile and effective choice for a wide range of applications.
Top product features:
- The product has a single flow design.
- It features an inline spring mechanism.
- It has a cracking pressure of 0.5 psi.
Top product applications:
- Water Treatment Systems
- Steam Trap Systems
- HVAC Systems
The CAMPBELL 4062EVFD is a 1-1/4 in. check valve with an inline spring design. It is intended for one-direction water flow applications and reverse-flow checking in piping and pump systems. This general-purpose valve features a lead-free brass body, FNPT x FNPT connections, and a 0.5 psi cracking pressure.
Key Features:
- Nominal size: 1-1/4 in.
- Connection type: FNPT x FNPT
- female NPT on both sides
- Body material: Lead-free brass
- Mechanism: Poppet with inline spring body design
- Check mechanism and spring material: 302 stainless steel
- Seal material: Buna-N
- Seat material: Bronze
- For media: Water
- Flow capacity: 23 gpm
- Maximum pressure: 400 psi
- Operating temperature range: 35 degrees F to 180 degrees F
- Mounting orientation: Horizontal, vertical
- NSF certification: NSF 61
- Standard: ANSI B1.20.1
- Overall length: 4.59 in.
- overall height: 2-1/4 in.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 2.30
- Package Height: 5.30
- Package Weight: 1.74
