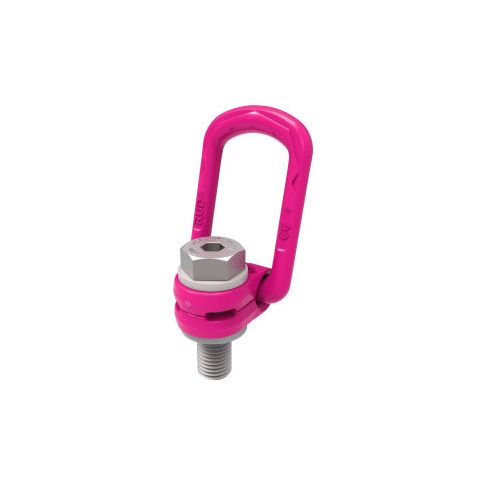

RUD Hoist Ring 180 Pivot 44090 lb. Load Capacity Pink Steel M48 Bolt 7982967
The RUD Hoist Ring 180 Pivot is a heavy-duty lifting solution designed for demanding applications. With a 44090 lb. load capacity, this pink steel hoist ring features a 360-degree pivoting Vlbg-plus with ice-bolt lifting points and a 180-degree pivoting suspension ring. The captive but exchangeable ice-bolt provides optimal wll with special corrosion protection. Ideal for use in harsh environments, the hoist ring operates within a temperature range of -40 to 100 degrees Celsius, with a maximum temperature of 350 degrees Celsius. Suitable for various industries, including construction, manufacturing, and logistics, this hoist ring offers quick and easy installation with a single bolt connection.
Top product features:
- Suspension ring pivots 180 degrees.
- Clamping spring works as a noise reduction and holds the suspension ring in the requested position.
- Optimal wll with captive but exchangeable ice-bolt with special corrosion protection.
Top product applications:
- Hoisting and rigging equipment
- Industrial lifting and material handling
- Heavy-duty construction and manufacturing
This item is NOT returnable.
This item is NOT cancellable.
Vlbg-plus with ice-bolt lifting points pivots 360 degrees. Suspension ring pivots 180 degrees. Optimal wll with captive but exchangeable ice-bolt with special corrosion protection. Clear marking at the bolt head rud ice thread size batch number and class of strength. Clamping spring works as a noise reduction and holds the suspension ring in the requested position. Clear marking of the minimum wll for all loading directions. Available as metric or unc thread. Variable bolt lengths available for tapped or through holes. Quick and easy installation with just one bolt connection. Assembly with flat/ring wrench or allen key possible. Maximum operation temperature range without reduction of wll -40 degrees to 100 degrees celsius. Maximum operation temperature with reduction of wll to 350 degree celsius.Additional Information
- UNSPSC: 25111914
- Brand: Caldwell Group Inc.
- Color: Pink
- Package Quantity: 1
- Country of Origin: DE
- FOB Origin: IL
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 14.30
- Package Width: 9.40
- Package Height: 6.80
- Package Weight: 26.50
