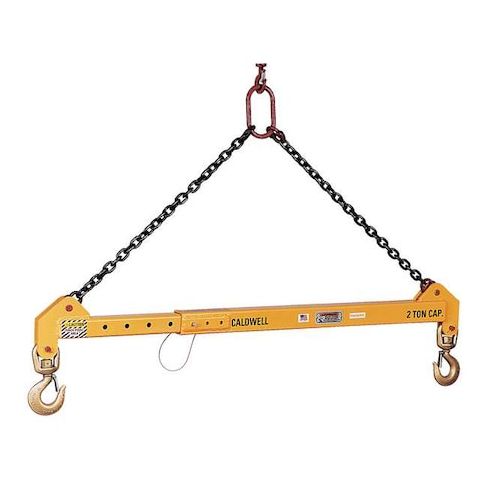

Adjustable Spreader Beam, 20, 000 lb, 120In MPN:32C-10-6/10

• The Caldwell 32C-10-6/10 is a below-the-hook adjustable spreader beam with a 20,000 lb working load limit. Its spread adjusts from 72 in. to 120 in. in 1 in. increments, with an overall length of 120 in. Required headroom ranges from 74 in. to 111 in. depending on the spread setting.

  The beam is constructed of steel with a yellow finish and a fixed top bail. It ships with top rigging and hooks — specifically, swivel hooks with latches and rigging chain. The hook opening is 1 3/4 in., and the bail inside dimensions are 10 7/8 in. long by 5 3/4 in. wide.

  The spreader beam is built to ASME standards.

  Key Features:

  • - MFR #: 32C-10-6/10 ·
  • Brand: Caldwell
  • - Type: Adjustable spreader beam (below-the-hook)
  • - Working load limit: 20,000 lb (10 ton)
  • - Spread: adjustable, 72–120 in., in 1 in. increments
  • - Overall length: 120 in. ·
  • Headroom: 74–111 in.
  • - Bail: fixed ·
  • Bail inside: 10 7/8 in. L × 5 3/4 in. W ·
  • Bail height/thickness: 1 1/4 in.
  • - Hook opening: 1 3/4 in.
  • - Includes: top rigging and hooks (swivel hooks with latches, rigging chain)
  • - Material: Steel ·
  • Color: Yellow
  • - Standards: ASME
  • - Country of origin: United States
