Beam Flange Clamp, Manual, 5 Tons MPN:BFC-5
Beam Flange Clamp, Manual, 5 Tons

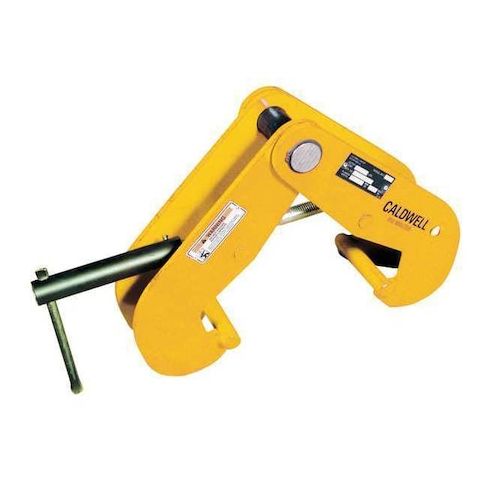

The Caldwell Beam Flange Clamp is a versatile and reliable lifting solution for heavy-duty applications. Designed for use on flat beams with a minimum thickness of 1/2 inch and a maximum width of 12 inches, this clamp can handle loads of up to 5 tons. Its manual operation and shackle attachment make it easy to integrate into existing lifting systems. Suitable for a range of industries, including construction, manufacturing, and oil and gas, this clamp provides a safe and efficient way to lift and move heavy loads, reducing the risk of damage and injury.
Top product features:
- Clamp Type Beam Flange Clamp allows for secure attachment to flat beams
- Maximum Jaw Opening 12 in enables lifting of thicker beams
- Working Load Limit 11,420 lb provides a safe lifting capacity
Top product applications:
- Construction site lifting
- Industrial manufacturing assembly
- Heavy equipment maintenance
Beam Lifting Clamp, Clamp Type Beam Flange Clamp, Material Steel, Maximum Jaw Opening 12 in, Minimum Jaw Opening 6 in, Working Load Limit 11,420 lb, Attachment Type Shackle, Maximum Beam Thickness 1 in, Compatible Beam Shape Flat, Minimum Beam Thickness 12 in, Overall Height 9 1/2 in, Attachment Diameter 1 1/4 in, Beam Mount Location Bottom, Top, Maximum Beam Width 12 in, Minimum Beam Width 6 in, Overall Depth 6 in, Overall Width 19 3/4 in, Standards ASME B30.20, ASME BTH-1
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.00
- Package Width: 11.00
- Package Height: 5.00
- Package Weight: 24.00
Product info last updated on February 28, 2026 5:19pm UTC
Category: Lifting, Pulling and Positioning
