One-Hole Compression Lug, 2 AWG Max, 5/16 in Stud, Long Barrel, Copper, None, 5 PK MPN:YAD2CM8E516
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6226753
One-Hole Compression Lug, 2 AWG Max, 5/16 in Stud, Long Barrel, Copper, None, 5 PK

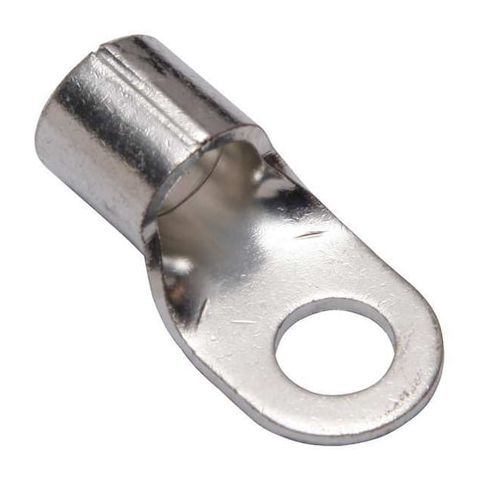

The Burndy One-Hole Compression Lug is a reliable and efficient solution for electrical connections. Suitable for use with 2 AWG max wire, this lug features a long barrel and copper construction for optimal conductivity. The crimp termination style ensures secure connections, while the tin contact finish provides added durability. With a maximum temperature of 302°F and voltage of 600V, this lug is ideal for a variety of applications, including industrial, commercial, and residential electrical systems. Its compact design and long barrel make it perfect for use in tight spaces, making it a versatile and reliable choice for electrical professionals.
Top product features:
- One-Hole Compression Lug crimps onto a wire to create a secure electrical connection.
- The lug has a long barrel that accommodates larger wire sizes, up to 2 AWG.
- The lug is designed for use in high-temperature applications, with a maximum operating temperature of 302 Degrees F.
Top product applications:
- Automotive wiring
- Electrical panel connections
- Heavy-duty equipment wiring
Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 2 AWG, Maximum Wire Size 2 AWG, Termination Style Crimp, Tongue Width 0.63 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.47 in, Barrel Outside Diameter 0.48 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221, Compatible with Product Type Code, Flex Cable
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 5.00
- Package Width: 9.00
- Package Height: 0.48
- Package Weight: 0.10
Product info last updated on February 3, 2026 6:07pm UTC
Category: Electrical Connectors
