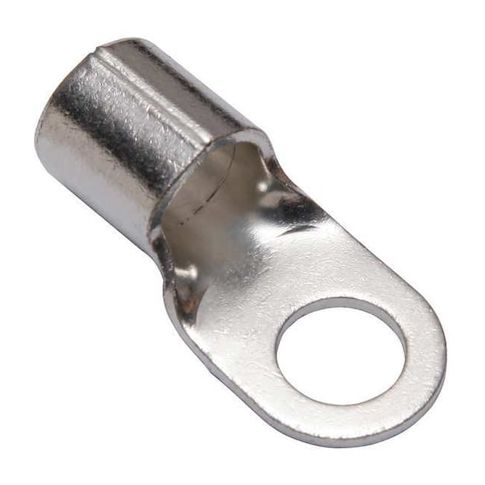

One-Hole Compression Lug, 2/0 AWG Max, 1/2 in Stud, Long Barrel, Copper, None MPN:YAD26M12E12
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6213654
One-Hole Compression Lug, 2/0 AWG Max, 1/2 in Stud, Long Barrel, Copper, None
The Burndy One-Hole Compression Lug is a reliable and efficient solution for wire termination and connection needs. Suitable for use with 2/0 AWG wire, this lug features a long barrel design and copper construction for optimal conductivity and durability. With a maximum temperature rating of 302°F and a maximum voltage rating of 600V, it can handle demanding applications. The lug is UL 467 certified and compatible with various product types, making it an ideal choice for use in electrical panels, switchgear, and other industrial settings where high-performance connections are required.
Top product features:
- Crimps onto wire up to 2/0 AWG
- Has a long barrel design for added durability
- Tin-plated copper contact for reliable electrical connections
Top product applications:
- Wire harness assembly
- Electrical panel connections
- Automotive wiring installations
Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 2/0 AWG, Maximum Wire Size 2/0 AWG, Termination Style Crimp, Tongue Width 0.91 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.71 in, Barrel Outside Diameter 0.67 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221, Compatible with Product Type Code, Flex Cable
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 9.00
- Package Height: 0.67
- Package Weight: 0.06
Product info last updated on January 15, 2026 8:39am UTC
Category: Electrical Connectors
