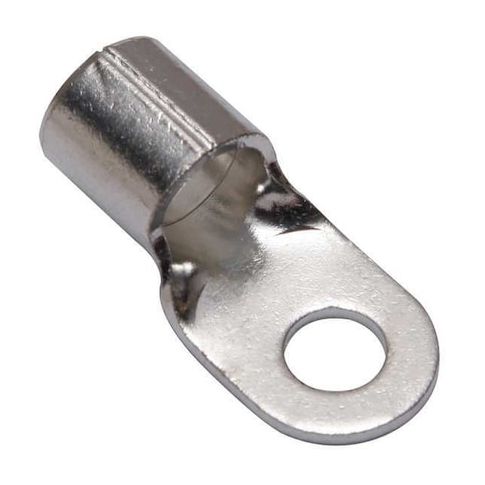

One-Hole Compression Lug, 2/0 AWG Max, 3/8 in Stud, Long Barrel, Copper, None MPN:YAD26M10E38
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6207625
One-Hole Compression Lug, 2/0 AWG Max, 3/8 in Stud, Long Barrel, Copper, None
The Burndy One-Hole Compression Lug is a reliable and efficient solution for electrical connections. Designed for use with 2/0 AWG wires, this lug features a long barrel and copper construction for optimal conductivity. With a maximum temperature rating of 302°F and a voltage rating of 600V, it's perfect for a wide range of applications, including industrial, commercial, and residential electrical installations. Its crimp termination style and tin contact finish ensure a secure and durable connection. Ideal for use in harsh environments, the Burndy One-Hole Compression Lug is a trustworthy choice for electrical professionals.
Top product features:
- Crimp termination style allows for secure and durable connections
- Long barrel design provides increased wire retention and stability
- Maximum temperature rating of 302 Degrees F enables high-temperature applications
Top product applications:
- Busbar connections
- Electrical panel connections
- Motor lead connections
Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 2/0 AWG, Maximum Wire Size 2/0 AWG, Termination Style Crimp, Tongue Width 0.91 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.71 in, Barrel Outside Diameter 0.67 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221, Compatible with Product Type Code, Flex Cable
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 9.00
- Package Height: 0.67
- Package Weight: 0.07
Product info last updated on January 15, 2026 8:38am UTC
Category: Electrical Connectors
