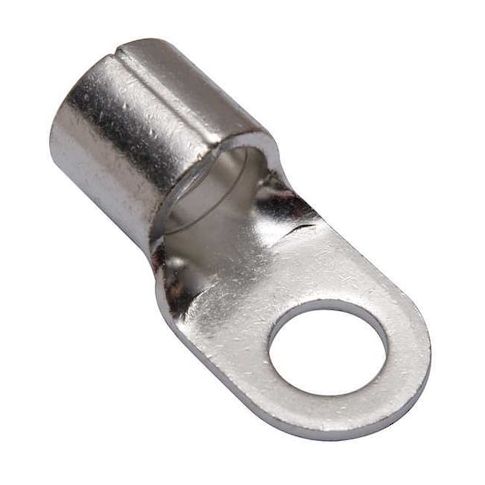

One-Hole Compression Lug, 250 kcmil Max, 5/8 in Stud, Long Barrel, Copper, None MPN:YAD30M16E58
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6153761
One-Hole Compression Lug, 250 kcmil Max, 5/8 in Stud, Long Barrel, Copper, None
This one-hole compression lug is designed for use with copper wire up to 300 kcmil, featuring a long barrel and brazed termination style. Compatible with a wide range of applications, it is ideal for use in electrical distribution systems, industrial control panels, and other high-voltage applications. The lug's crimp termination style ensures a secure and reliable connection, while its copper construction provides excellent conductivity and durability. With a maximum temperature rating of 302°F and voltage rating of 600V, this lug is suitable for use in a variety of settings, including commercial and industrial environments.
Top product features:
- Copper construction provides high conductivity for efficient electrical transmission.
- Long barrel design allows for easy wire installation and secure crimping.
- Tin contact finish enhances corrosion resistance and ensures reliable connections.
Top product applications:
- Wire to Panel Connection
- Heavy Duty Electrical Connection
- Industrial Wiring Harness Assembly
Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 250 kcmil, Maximum Wire Size 300 kcmil, Termination Style Crimp, Tongue Width 1.18 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.95 in, Barrel Outside Diameter 1 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 9.00
- Package Height: 1.00
- Package Weight: 0.15
Product info last updated on February 2, 2026 9:40am UTC
Category: Electrical Connectors
