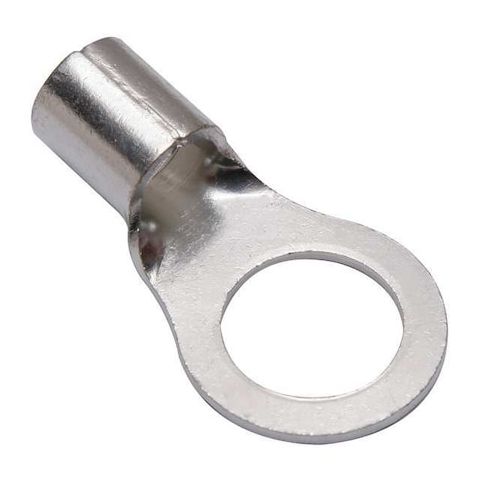

One-Hole Compression Lug, 1/0 AWG Max, 3/4 in Stud, Long Barrel, Copper, None MPN:YAD25M20E34
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6149577
One-Hole Compression Lug, 1/0 AWG Max, 3/4 in Stud, Long Barrel, Copper, None
This One-Hole Compression Lug is designed for secure and reliable connections in high-temperature and high-voltage applications. Made with copper and featuring a crimp termination style, it provides a strong and durable connection for wires up to 1/0 AWG. Ideal for use in industrial settings, such as in electrical panels, motor control centers, and other heavy-duty applications. The long barrel design allows for easy installation and provides a secure grip on the wire, while the tin contact finish ensures excellent conductivity. Meets UL 467 standards for safety and reliability.
Top product features:
- Crimps onto 1/0 AWG wire
- Has a long barrel for deep wire seating
- Is made with copper for good conductivity
Top product applications:
- Electrical Panel Installations
- Motor Control Applications
- Heavy-Duty Industrial Wiring
Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 1/0 AWG, Maximum Wire Size 1/0 AWG, Termination Style Crimp, Tongue Width 1.1 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.63 in, Barrel Outside Diameter 0.57 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 9.00
- Package Height: 0.57
- Package Weight: 0.06
Product info last updated on March 3, 2026 3:27pm UTC
Category: Electrical Connectors
