One-Hole Compression Lug, 6 AWG Max, 5/16 in Stud, Long Barrel, Copper, None, 10 PK MPN:YAD6CM8E516
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6124465

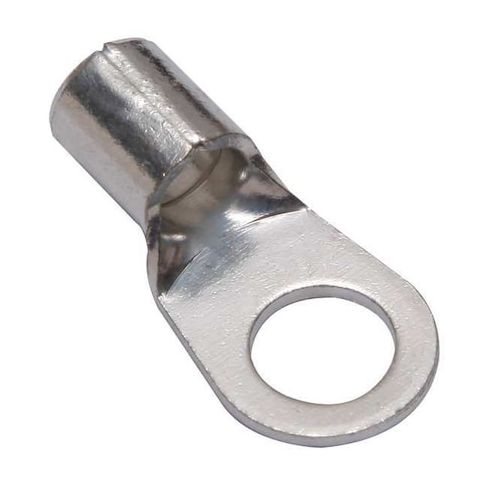

One-Hole Compression Lug, 6 AWG Max, 5/16 in Stud, Long Barrel, Copper, None, 10 PK
The One-Hole Compression Lug from Burndy is a reliable and efficient termination solution for electrical connections. Designed for use with 6 AWG wires, this lug features a long barrel and braze-style construction for secure crimping. Compatible with a range of applications, including industrial and commercial settings, it withstands temperatures up to 302°F and voltages of 600V. Its compact design and durable materials make it an ideal choice for use in harsh environments, ensuring consistent performance and long-lasting connections. The lug is also UL 467 certified, providing assurance of its quality and safety.
Top product features:
- One-Hole Compression Lug has a maximum operating temperature of 302 Degrees F.
- One-Hole Compression Lug can withstand a maximum voltage of 600 V.
- One-Hole Compression Lug is designed for use with wire sizes from 6 AWG.
Top product applications:
- Electrical wiring and circuit installation
- Automotive electrical system connections
- Industrial electrical equipment connections
Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 6 AWG, Maximum Wire Size 6 AWG, Termination Style Crimp, Tongue Width 0.55 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.4 in, Barrel Outside Diameter 0.32 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P158, 22P219, 22P221
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 5.00
- Package Width: 9.00
- Package Height: 0.32
- Package Weight: 0.10
Product info last updated on February 28, 2026 3:59am UTC
Category: Electrical Connectors
