One-Hole Compression Lug, 2/0 AWG Max, 5/16 in Stud, Long Barrel, Copper, None MPN:YAD26M8E516
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6124036

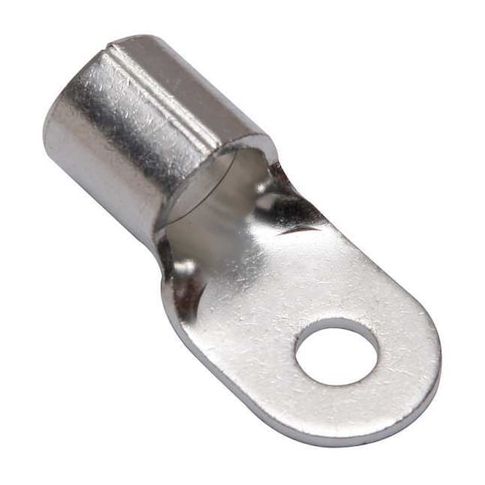

One-Hole Compression Lug, 2/0 AWG Max, 5/16 in Stud, Long Barrel, Copper, None
The Burndy One-Hole Compression Lug is a reliable and efficient termination solution for electrical connections. With a maximum temperature rating of 302°F and voltage rating of 600V, it's ideal for use in a variety of applications, including industrial, commercial, and residential electrical systems. The long barrel design provides a secure grip on wires up to 2/0 AWG, ensuring a durable and long-lasting connection. This lug is compatible with a range of products, including flex cables, and is suitable for use in a variety of industries, including construction, manufacturing, and energy. It's also backed by UL 467 standards for added assurance.
Top product features:
- Copper construction for high conductivity
- Tin contact finish for corrosion resistance
- Crimping termination style for secure wire connection
Top product applications:
- Wire Harness Assembly
- Bus Bar Connections
- Electrical Panel Wiring
Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 2/0 AWG, Maximum Wire Size 2/0 AWG, Termination Style Crimp, Tongue Width 0.91 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.71 in, Barrel Outside Diameter 0.67 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221, Compatible with Product Type Code, Flex Cable
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 9.00
- Package Height: 0.67
- Package Weight: 0.07
Product info last updated on February 6, 2026 1:00am UTC
Category: Electrical Connectors
