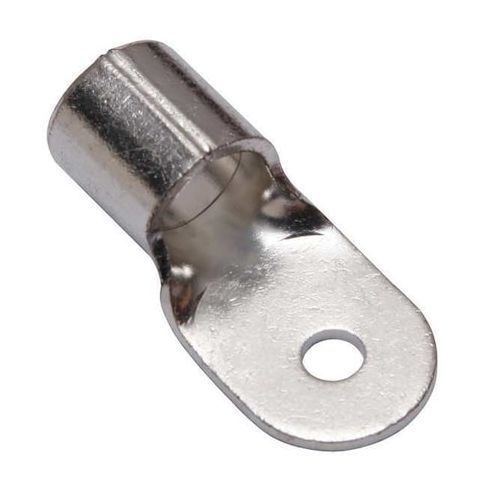

One-Hole Compression Lug, 2/0 AWG Max, 1/4 in Stud, Long Barrel, Copper, None MPN:YAD26M6E14
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6121981
One-Hole Compression Lug, 2/0 AWG Max, 1/4 in Stud, Long Barrel, Copper, None
This one-hole compression lug is designed for use with 2/0 AWG wire, featuring a long barrel and copper construction for optimal conductivity. The lug is suitable for applications requiring high voltage and temperature resistance, with a maximum rating of 600V and 302°F. It's ideal for use in electrical connections, wire harnesses, and circuit assemblies. The lug's crimp termination style ensures secure and reliable connections, making it a reliable choice for a wide range of industries, including automotive, aerospace, and industrial electronics. Its compact size and ease of installation also make it a convenient solution for many applications.
Top product features:
- Crimps wires up to 2/0 AWG
- Terminates with a tin-coated copper contact
- Has a long barrel design for added strength and durability
Top product applications:
- Automotive Wiring Harness
- Electrical Panel Connections
- Heavy Duty Truck Wiring
Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 2/0 AWG, Maximum Wire Size 2/0 AWG, Termination Style Crimp, Tongue Width 0.91 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.71 in, Barrel Outside Diameter 0.67 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221, Compatible with Product Type Code, Flex Cable
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 9.00
- Package Height: 0.67
- Package Weight: 0.05
Product info last updated on February 7, 2026 7:57pm UTC
Category: Electrical Connectors
