One-Hole Compression Lug, 400 kcmil Max, 3/4 in Stud, Long Barrel, Copper, None MPN:YAD33M20E34
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6101146

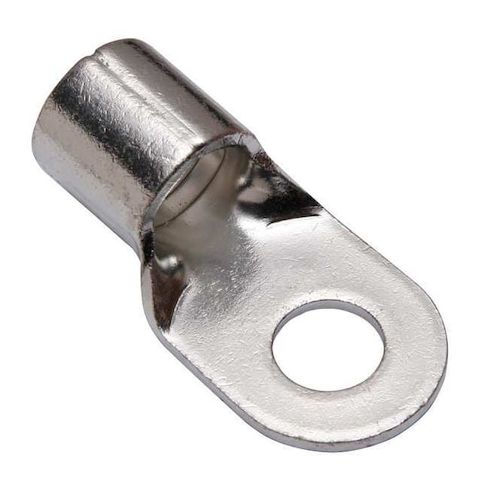

One-Hole Compression Lug, 400 kcmil Max, 3/4 in Stud, Long Barrel, Copper, None
The Burndy One-Hole Compression Lug is a reliable and efficient solution for electrical connections in demanding applications. With a maximum operating temperature of 302°F and a maximum voltage of 600V, this lug is suitable for use in high-temperature and high-voltage environments. Its long barrel design and copper construction provide excellent conductivity and durability. The lug is compatible with wire sizes from 400 kcmil to 450 kcmil, making it ideal for use in electrical distribution systems, industrial control panels, and other high-power applications where reliability and efficiency are paramount. Its compact design also makes it suitable for use in confined spaces.
Top product features:
- One-Hole Compression Lug that can connect up to 450 kcmil wire
- Long barrel design for easy wire insertion and secure crimping
- Copper construction with tin finish for reliable electrical connections
Top product applications:
- Circuit Breaker Panels
- Low-Voltage Power Distribution
- Electrical Panelboards
Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 400 kcmil, Maximum Wire Size 450 kcmil, Termination Style Crimp, Tongue Width 1.5 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 1.26 in, Barrel Outside Diameter 1.24 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 9.00
- Package Height: 1.24
- Package Weight: 0.40
Product info last updated on March 27, 2026 3:28pm UTC
Category: Electrical Connectors
