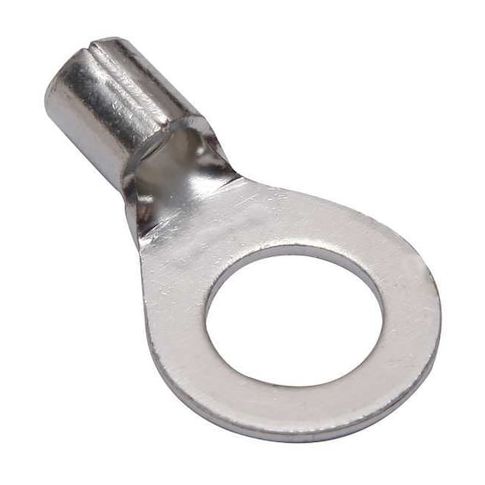

One-Hole Compression Lug, 8 AWG Max, 3/8 in Stud, Long Barrel, Copper, None, 10 PK MPN:YAD8CM10E38
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6065157
One-Hole Compression Lug, 8 AWG Max, 3/8 in Stud, Long Barrel, Copper, None, 10 PK
The Burndy One-Hole Compression Lug is a reliable and efficient electrical connection solution for a variety of applications. With a maximum operating temperature of 302 degrees F and a maximum voltage of 600 V, this lug is suitable for use in high-performance electrical systems. Its long barrel design provides a secure and durable connection, while the copper construction ensures excellent conductivity. Ideal for use in industrial, commercial, and residential settings, this lug is a versatile solution for connecting 8 AWG wires to 3/8 in studs. Its compact size and easy crimp termination make it a convenient choice for a range of applications.
Top product features:
- One-Hole Compression Lug terminates 8 AWG wire through a single hole.
- Copper construction provides high electrical conductivity.
- Long barrel design allows for secure crimping of wire.
Top product applications:
- Automotive electrical connections
- Electrical panel connections
- Heavy-duty electrical harness assembly
Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 8 AWG, Maximum Wire Size 8 AWG, Termination Style Crimp, Tongue Width 0.71 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.31 in, Barrel Outside Diameter 0.26 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P158, 22P219, 22P221
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 5.00
- Package Width: 9.00
- Package Height: 0.26
- Package Weight: 0.09
Product info last updated on January 30, 2026 10:02am UTC
Category: Electrical Connectors
