15.6" Cordless Crimping Tool 4.8 cu. ft. MPN:PAT644LI
Free Shipping
In Stock
Elevate your electrical installation and maintenance tasks with the 15.6in Cordless Crimping Tool from Burndy. This powerful, cordless tool features a maximum crimping capacity of 1,000 kcmil for copper lugs and 900 kcmil for aluminum lugs, making it ideal for a wide range of applications, including electrical distribution and transmission systems. The tool's 11-ton crimping force ensures secure connections, while its pistol grip handle provides comfort and control. Compatible with the Makita 18V LXT battery platform, this tool is perfect for electrical contractors, linemen, and maintenance personnel who require a reliable and efficient crimping solution.
Top product features:
- Crimping capacity for copper lugs up to 1,000 kcmil
- Crimping capacity for aluminum lugs up to 900 kcmil
- Crimping force of 11 tons
Top product applications:
- Electrical contractors use this tool for crimping copper and aluminum lugs in high-voltage applications.
- Utility companies use this tool for installing and repairing electrical infrastructure.
- Automotive electricians use this tool for crimping lugs on heavy-duty electrical connectors.

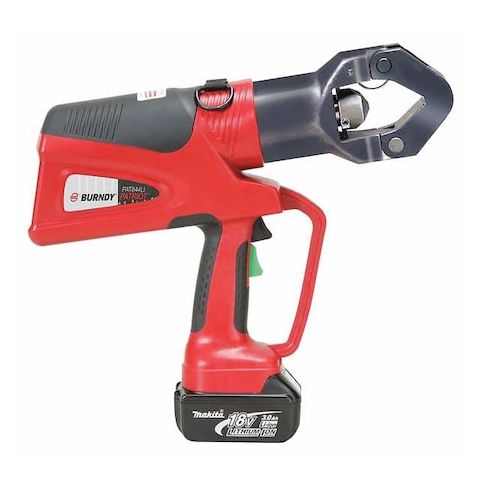

The Burndy PAT644LI is a cordless, battery-powered crimping tool from the PATRIOT 644 series, built for electrical wire and cable crimping. It delivers 11 tons of force through a latching crimp head and uses a dieless, range-taking system, so a single head covers a broad conductor range without changing dies. An auto-cycle function drives each crimp to completion with an approximate 2-second cycle time.
Key Features:
- - The tool crimps copper from 6 AWG up to 1,000 kcmil, aluminum up to 900 kcmil, and copper flex up to 777 kcmil, and is compatible with copper, aluminum, copper flex, AAC, AAAC, ACAR, and ACSR conductors. It is rated to ANSI C119.4 and UL 486A-B (UL Listed), with UL 486A-B connection capability for Burndy connectors. The head rotates 355 degrees for working in confined spaces, and the tool uses an ergonomic pistol-grip body.
- - Running on the Makita 18V LXT battery platform, the kit ships with the bare tool, two 18V lithium-ion batteries (BAT18VLI), a charger (PATCHGRLI), and a polymer carrying case. The tool weighs 14.55 lb and measures 15.62 in. long, 14.12 in. high, and 3.25 in. wide.
- - MFR #: PAT644LI ·
- Brand: Burndy ·
- Series: PATRIOT 644
- - Type: Cordless crimping tool ·
- Head style: Latching ·
- Power: Cordless
- - Crimping force: 11 ton ·
- Voltage: 18V ·
- Auto-cycle: Yes (~2 sec)
- - Crimp head: Dieless, range-taking (0 dies required)
- - Copper capacity: 6 AWG–1,000 kcmil ·
- Copper flex: up to 777 kcmil
- - Aluminum capacity: 6 AWG–900 kcmil
- - Compatible conductors: copper, aluminum, copper flex, AAC, AAAC, ACAR, ACSR
- - Head rotation: 355° ·
- Handle: pistol grip, ergonomic
- - Battery platform: Makita 18V LXT ·
- Batteries: (2) BAT18VLI 18V Li-ion ·
- Charger: PATCHGRLI
- - Weight: 14.55 lb ·
- Overall: 15.62 in. L × 14.12 in. H × 3.25 in. W
- - Includes: bare tool, (2) batteries, charger, polymer carrying case
- - Standards: ANSI C119.4, UL 486A-B, UL Listed ·
- UL 486A-B capability: Burndy
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 28.30
- Package Width: 7.50
- Package Height: 18.10
- Package Weight: 30.35
- California Prop 65 Warning: WARNING: This product can expose you to chemicals including Carbon black, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
