Two-Hole Compression Lug, 2 AWG Max, 1/2 in Stud, Long Barrel, Copper, Brown MPN:YA2C2N
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4706107

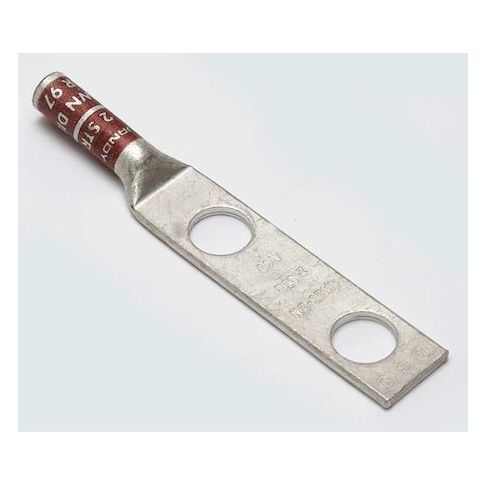

Two-Hole Compression Lug, 2 AWG Max, 1/2 in Stud, Long Barrel, Copper, Brown
The Burndy Two-Hole Compression Lug is a high-quality electrical connector designed for use with stranded copper wire up to 2 AWG. With a long barrel and straight tongue angle, this lug provides a secure and reliable connection in a variety of applications. Suitable for use in harsh environments with a maximum operating temperature of 194°F and a maximum voltage of 35 kV, this lug meets CSA and UL standards for safety and performance. Ideal for use in industrial, commercial, and residential electrical installations, this lug is a versatile and reliable solution for connecting copper conductors to 1/2 inch studs.
Top product features:
- Two-Hole Compression Lug crimps stranded copper wire up to 2 AWG.
- It has a long barrel design for accommodating larger wire sizes.
- It is certified to CSA and UL 486A-486B standards for safe use in high-voltage applications.
Top product applications:
- Motor Control Applications
- Power Distribution Systems
- Electrical Panel Assembly
Compression Lug, Barrel Size Long, Color Code Brown, Die Code 10, Tongue Angle Straight, Tongue Width 0.83 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 1.00
- Package Height: 0.50
- Package Weight: 0.05
Product info last updated on January 16, 2026 10:19pm UTC
Category: Electrical Connectors
