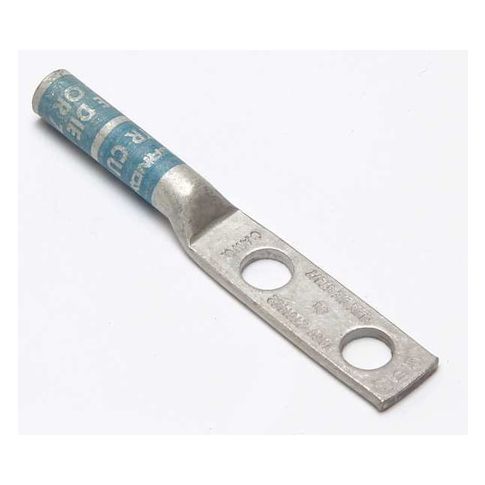

Two-Hole Compression Lug, 6 AWG Max, 1/4 in Stud, Long Barrel, Copper, Blue MPN:YA6C2TC14E2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4706082
Two-Hole Compression Lug, 6 AWG Max, 1/4 in Stud, Long Barrel, Copper, Blue
The Burndy Two-Hole Compression Lug is a reliable and efficient solution for connecting copper conductors in a variety of applications. With a long barrel design and straight tongue angle, this lug provides a secure and durable connection. Ideal for use in electrical systems, it can handle stranded copper wire sizes from 6 AWG and withstands temperatures up to 194°F and voltages of up to 35 kV AC. CSA certified and UL listed, this lug meets strict safety standards. Suitable for use in commercial and industrial settings, it is a great choice for electrical contractors and installers looking for a reliable connection solution.
Top product features:
- Two-Hole Lug Compression Connector with crimp termination style
- Has a maximum operating temperature of 194 Degrees F
- Connects stranded copper wire sizes up to 6 AWG
Top product applications:
- Industrial electrical panel wiring
- Power distribution systems
- Low-voltage electrical circuit connections
Two-Hole Lug Compression Connector, Barrel Size Long, Color Code Blue, Die Code 374, 7, Tongue Angle Straight, Tongue Width 0.45 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole No, Hole Center to Center 0.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 0.50
- Package Height: 0.50
- Package Weight: 0.05
Product info last updated on February 5, 2026 5:08pm UTC
Category: Electrical Connectors
