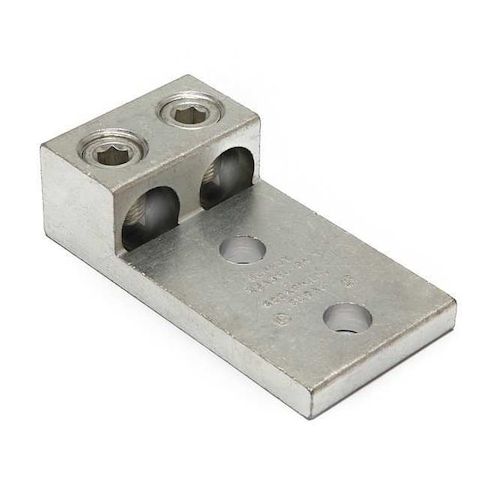

Mechanical Lug, 600 kcmil Max, 2 Conductor, 2 Hole, 1/2 in Stud, Aluminum MPN:K2A36U2N
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4705312
Mechanical Lug, 600 kcmil Max, 2 Conductor, 2 Hole, 1/2 in Stud, Aluminum
The Burndy Mechanical Lug is a versatile and reliable electrical connector designed for use with aluminum and copper conductors. Suitable for stranded copper wire sizes from 2 AWG to 600 kcmil, it provides secure and efficient connections in a variety of applications, including electrical distribution systems, industrial equipment, and commercial buildings. Its durable aluminum construction and slotted head design make it easy to install and inspect, while its operating temperature range of up to 194°F ensures reliable performance in demanding environments. The lug is available in a range of configurations to meet specific project needs.
Top product features:
- For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size Minimum 2 AWG, For Stranded Copper Wire Size Maximum 600 kcmil
- Has a Slotted Head Style
- Connects 2 Conductors with 2 Holes
Top product applications:
- Outdoor Lighting Installation
- Bus Bar Connection
- Power Distribution System
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 600 kcmil, For Stud Size 1/2 in, Head Style Slotted, Number of Holes 2, Hole Diameter 0.56 in, Hole Spacing 1.75 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 2, Number of Terminations 2, Tongue Length 3.22 in, Tongue Width 2.42 in, Tongue Thickness 0.44 in, Connector Type Lug
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 2.40
- Package Height: 1.50
- Package Weight: 0.60
Product info last updated on February 22, 2026 4:36am UTC
Category: Electrical Connectors
