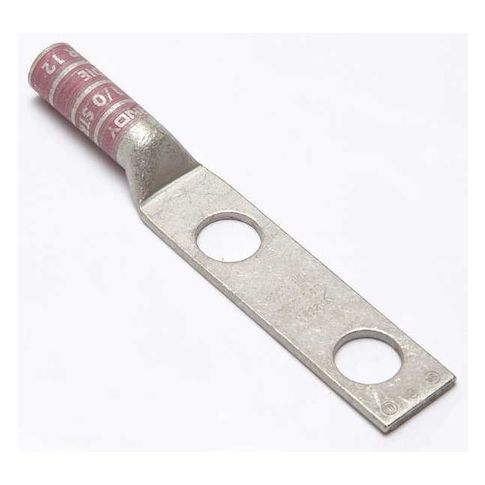

Two-Hole Compression Lug, 1/0 AWG Max, 1/2 in Stud, Long Barrel, Copper, Pink MPN:YA252N
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4705041
Two-Hole Compression Lug, 1/0 AWG Max, 1/2 in Stud, Long Barrel, Copper, Pink
The Burndy Two-Hole Compression Lug is a reliable and efficient solution for terminating 1/0 AWG copper conductors. Its long barrel design provides a secure connection, while the straight tongue angle and 0.83 in width ensure easy installation. With a maximum operating temperature of 194°F and a voltage rating of 35 kV, this lug is suitable for a variety of applications, including industrial control systems and electrical distribution networks. Its CSA certification and UL listing ensure compliance with industry standards. Use it for copper conductor terminations in harsh environments, where reliability and safety are paramount.
Top product features:
- Copper construction provides electrical conductivity and durability
- Termination style is crimp, allowing for secure connection to stranded copper wire
- Maximum operating temperature of 194 Degrees F ensures reliable performance in various environments
Top product applications:
- Electrical Panel Connections
- Bus Bar Connections
- Power Distribution Systems
Compression Lug, Barrel Size Long, Color Code Pink, Die Code 12, 348, Tongue Angle Straight, Tongue Width 0.83 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 0.90
- Package Height: 0.30
- Package Weight: 0.10
Product info last updated on February 11, 2026 12:49pm UTC
Category: Electrical Connectors
