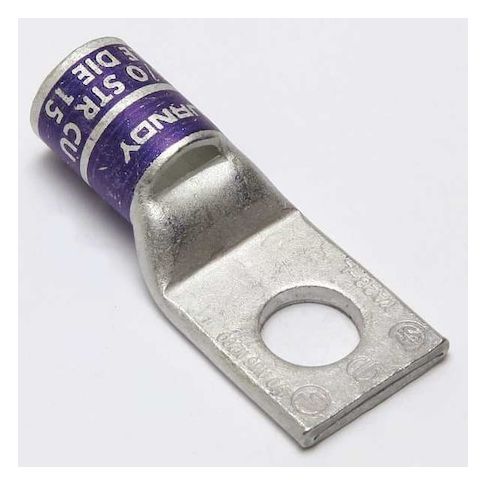

One-Hole Compression Lug, 4/0 AWG Max, 1/2 in Stud, Standard Barrel, Copper, Purple MPN:YA28LBOX
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4702792
One-Hole Compression Lug, 4/0 AWG Max, 1/2 in Stud, Standard Barrel, Copper, Purple
The Burndy One-Hole Compression Lug is a reliable and efficient connector for copper stranded wire applications. Suitable for use with 4/0 AWG wire, this lug provides a secure and long-lasting connection. Its standard barrel design and straight tongue angle ensure easy installation and maximum conductivity. With a maximum operating temperature of 194°F and a maximum voltage of 35 kV AC, this lug is ideal for use in a variety of applications, including electrical distribution and transmission systems. Its compact size and lightweight design make it easy to handle and install.
Top product features:
- One-Hole Lug Compression Connector provides a secure crimp termination for stranded copper wire up to 4/0 AWG.
- Has a standard barrel size for universal compatibility.
- Includes an inspection hole for visual verification of conductor connection.
Top product applications:
- Electrical Panel Installation
- Busbar Connection in Industrial Settings
- Power Distribution Systems for Heavy-Duty Equipment
One-Hole Lug Compression Connector, Barrel Size Standard, Color Code Purple, Die Code 15, Tongue Angle Straight, Tongue Width 1.02 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 4/0 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 1.00
- Package Height: 0.60
- Package Weight: 0.01
Product info last updated on March 4, 2026 1:39pm UTC
Category: Electrical Connectors
