Mechanical Lug, 350 kcmil Max, 2 Conductor, 11/16 in Stud, Aluminum MPN:AMS350
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4702424

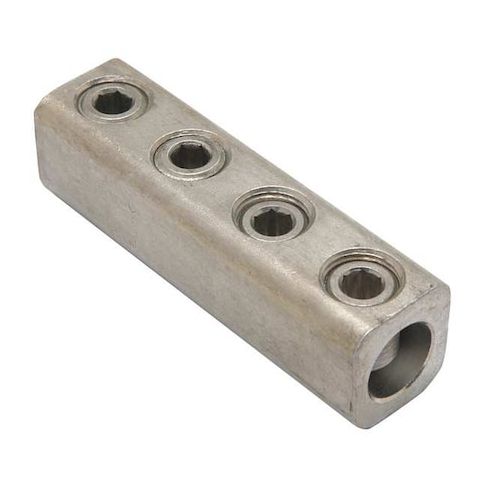

Mechanical Lug, 350 kcmil Max, 2 Conductor, 11/16 in Stud, Aluminum
The Burndy Mechanical Lug is a versatile and reliable connector for aluminum and copper conductors. Suitable for stranded copper wire sizes from 6 AWG to 350 kcmil, it provides a secure and efficient connection in a variety of applications. The lug's hex socket head style and aluminum body ensure a durable and long-lasting connection. Ideal for use in electrical panels, switchgear, and other high-voltage applications, the Mechanical Lug offers a maximum operating temperature of 194°F and a maximum voltage of 600V, making it a trusted choice for electrical professionals. Its compact size and lightweight design make it easy to install.
Top product features:
- Connects stranded copper wire with a minimum size of 6 AWG and a maximum size of 350 kcmil.
- Accepts two conductors for a two-conductor connection.
- Accepts an 11/16 in stud for secure installation.
Top product applications:
- Bus bar connections
- Electrical panel connections
- Generator connections
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 350 kcmil, For Stud Size 11/16 in, Head Style Hex Socket, Number of Holes Not Applicable, Hole Diameter Not Applicable, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 2, Number of Terminations 4, Tongue Width Not Applicable
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 1.20
- Package Height: 1.50
- Package Weight: 0.40
