Mechanical Lug, 500 kcmil Max, 1 Conductor, 1 Hole, 1/2 in Stud, Copper MPN:KPA34
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4701846

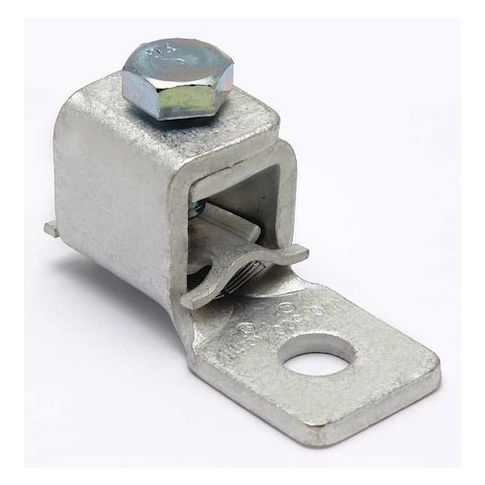

Mechanical Lug, 500 kcmil Max, 1 Conductor, 1 Hole, 1/2 in Stud, Copper
The Burndy Mechanical Lug is a reliable and efficient connector for stranded copper wire, designed for use in a variety of applications. With a maximum operating temperature of 194°F and a maximum voltage of 600V, it is suitable for use in electrical systems. The lug features a hex head design and a copper body, ensuring a secure and durable connection. Its compact size and lightweight design make it easy to install and use. Ideal for use in commercial and industrial settings, the Mechanical Lug is a versatile and reliable solution for electrical connections.
Top product features:
- Connects stranded copper wire sizes from 4/0 AWG to 500 kcmil
- Secures the conductor with a 1/2 in stud
- Operates at a maximum temperature of 194 Degrees F and a maximum voltage of 600 V
Top product applications:
- Busbar connections
- Panelboards
- Distribution boxes
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 4/0 AWG, For Stranded Copper Wire Size - Maximum 500 kcmil, For Stud Size 1/2 in, Head Style Hex Head, Number of Holes 1, Hole Diameter 0.54 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 1.38 in, Tongue Width 1.5 in, Tongue Thickness 0.2 in, Connector Type Terminal
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 2.20
- Package Height: 1.50
- Package Weight: 0.65
Product info last updated on February 5, 2026 1:01am UTC
Category: Electrical Connectors
