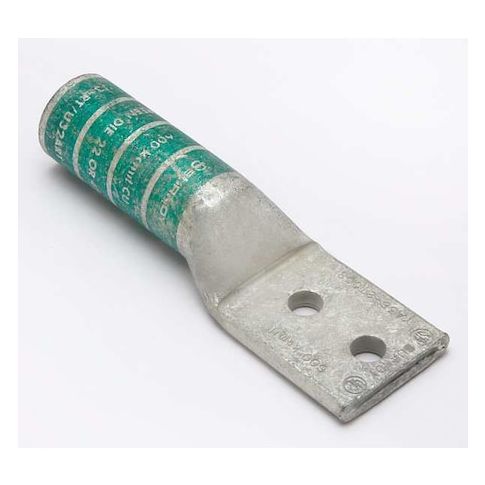

Two-Hole Compression Lug, 600 kcmil Max, 3/8 in Stud, Long Barrel, Copper, Green MPN:YA362TC38
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4701602
Two-Hole Compression Lug, 600 kcmil Max, 3/8 in Stud, Long Barrel, Copper, Green
The Burndy Two-Hole Compression Lug is a reliable and efficient solution for connecting copper conductors up to 600 kcmil. Designed for use in a variety of applications, including electrical distribution and transmission systems, this lug features a long barrel and straight tongue angle for secure crimping. With a maximum operating temperature of 194°F and a maximum voltage rating of 35 kV, it meets the standards of CSA and UL 486A-486B. The lug's compact size and lightweight design make it easy to install and transport, making it an ideal choice for electrical professionals seeking a high-quality, long-lasting connection solution.
Top product features:
- Two-Hole Compression Lug that terminates stranded copper wire up to 600 kcmil in size.
- Has a long barrel design for increased wire capacity.
- Copper material provides high conductivity and durability.
Top product applications:
- Busbar connections
- Electrical panel connections
- Generator connections
Compression Lug, Barrel Size Long, Color Code Green, Die Code 22, 472, Tongue Angle Straight, Tongue Width 1.74 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 600 kcmil, For Stranded Copper Wire Size - Maximum 600 kcmil, Inspection Hole No, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.60
- Package Width: 1.50
- Package Height: 1.20
- Package Weight: 0.80
Product info last updated on February 3, 2026 7:02pm UTC
Category: Electrical Connectors
