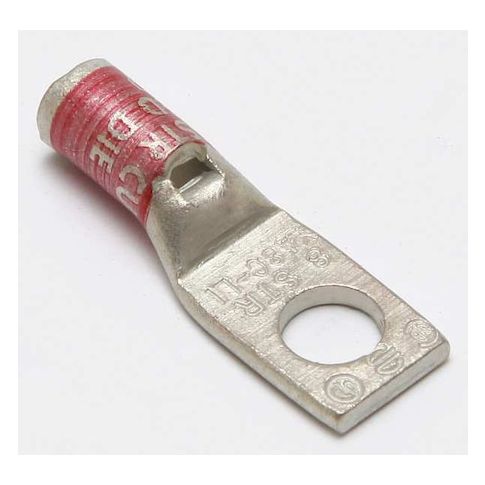

One-Hole Compression Lug, 8 AWG Max, #6 Stud, Standard Barrel, Copper, Red MPN:YA8CLNT6
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4701417
One-Hole Compression Lug, 8 AWG Max, #6 Stud, Standard Barrel, Copper, Red
The Burndy One-Hole Compression Lug is a high-quality electrical connector designed for use with copper conductors. Its standard barrel size and straight tongue angle provide a secure crimp termination. Rated for 8 AWG stranded copper wire, this lug is suitable for a variety of applications, including power distribution and industrial electrical systems. With a maximum operating temperature of 194°F and a maximum voltage of 35 kV, it meets the standards of CSA and UL 486A-486B. Its compact size and ease of installation make it an ideal choice for projects requiring reliable and efficient electrical connections.
Top product features:
- One-Hole Compression Lug for copper conductors up to 8 AWG
- Crimps stranded copper wire
- Suitable for operating temperatures up to 194 Degrees F
Top product applications:
- Power Distribution Panels
- Electrical Enclosures
- Industrial Automation Systems
Compression Lug, Barrel Size Standard, Color Code Red, Die Code 49, Tongue Angle Straight, Tongue Width 0.29 in, For Conductor Material Copper, For Stud Size #6, For Stranded Copper Wire Size - Minimum 8 AWG, For Stranded Copper Wire Size - Maximum 8 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 1
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.10
- Package Width: 0.30
- Package Height: 0.30
- Package Weight: 0.01
Product info last updated on January 22, 2026 1:49am UTC
Category: Electrical Connectors
