Mechanical Lug, 1 Conductor, 1/4 in Stud, Aluminum MPN:BGBL1/0
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4700744

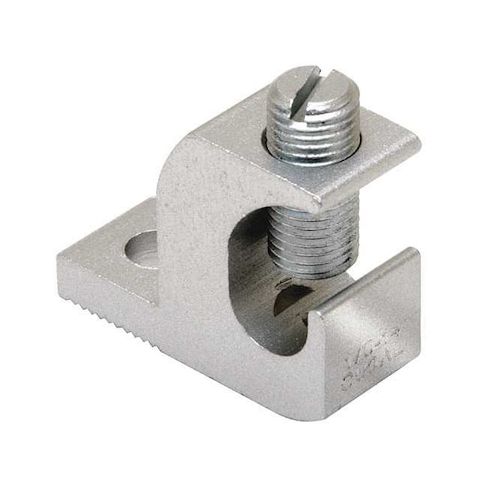

Mechanical Lug, 1 Conductor, 1/4 in Stud, Aluminum
The Burndy Mechanical Lug is a reliable and efficient connector for aluminum and copper conductors. Suitable for stranded copper wire sizes 14 AWG to 1/0 AWG, this lug features a sturdy aluminum body and a slotted head design for easy installation. With a maximum operating temperature of 194°F and a voltage rating of 600V, it's perfect for a variety of applications, including electrical distribution systems, industrial equipment, and renewable energy installations. The lug's lay-in design and CSA certification make it a trusted choice for professionals seeking a high-quality, durable connector.
Top product features:
- For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size Minimum 14 AWG, For Stranded Copper Wire Size Maximum 1/0 AWG, connects stranded copper wire up to 1/0 AWG.
- Has a 1/4 in stud for secure attachment.
- Can operate at a maximum temperature of 194 Degrees F and a maximum voltage of 600 V.
Top product applications:
- Bus bar connections
- Electrical panel connections
- Generator or motor connections
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, For Stud Size 1/4 in, Head Style Slotted, Number of Holes 1, Hole Diameter 0.28 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Tongue Length 0.8 in, Tongue Width 0.63 in, Tongue Thickness 0.19 in, Connector Type Lay-In Lug, Standards CSA Certified, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.70
- Package Width: 1.20
- Package Height: 0.60
- Package Weight: 0.10
Product info last updated on February 16, 2026 10:20pm UTC
Category: Electrical Connectors
