Two-Hole Compression Lug, 350 kcmil Max, 3/8 in Stud, Long Barrel, Copper, Blue MPN:YAZ342NT38FX
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4700726

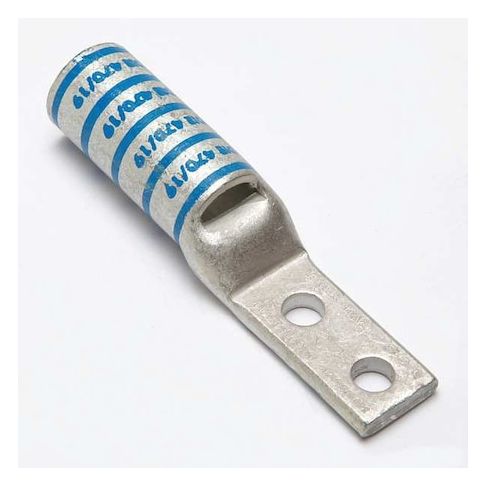

Two-Hole Compression Lug, 350 kcmil Max, 3/8 in Stud, Long Barrel, Copper, Blue
The Burndy Two-Hole Compression Lug is a reliable and efficient solution for electrical connections. Designed for use with copper conductors, this lug features a long barrel and straight tongue angle for easy installation. With a maximum operating temperature of 194°F and a voltage rating of 35 kV, it is suitable for a wide range of applications, including power distribution and transmission. The lug's CSA certification and UL listing ensure compliance with industry standards. Its compact size and ease of use make it an ideal choice for electricians, contractors, and engineers working on high-voltage projects.
Top product features:
- Two-Hole Compression Lug has a long barrel design.
- Compression Lug is rated for a maximum operating temperature of 194 Degrees F.
- Compression Lug can terminate stranded copper wire sizes from 350 kcmil to 500 kcmil.
Top product applications:
- Electric Power Distribution Systems
- Industrial Electrical Wiring
- Heavy-Duty Electrical Installation
Compression Lug, Barrel Size Long, Color Code Blue, Die Code 19, Tongue Angle Straight, Tongue Width 0.96 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 350 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, Inspection Hole Yes, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.40
Product info last updated on March 3, 2026 6:08am UTC
Category: Electrical Connectors
