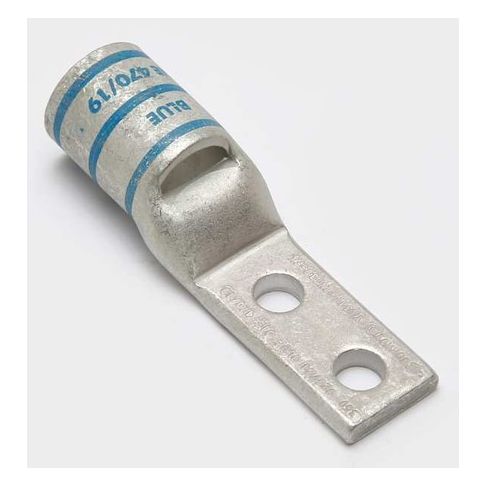

Two-Hole Compression Lug, 350 kcmil Max, 3/8 in Stud, Standard Barrel, Copper, Blue MPN:YA34L2NT38FX
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4700525
Two-Hole Compression Lug, 350 kcmil Max, 3/8 in Stud, Standard Barrel, Copper, Blue
The Burndy Two-Hole Compression Lug is a reliable and efficient termination solution for copper conductors up to 500 kcmil in size. This lug features a 3/8 inch stud and a standard barrel design, making it suitable for a wide range of applications, including electrical distribution systems and industrial power transmission. Its copper construction ensures high conductivity and durability, while its CSA certification and UL listing guarantee compliance with industry standards. With its compact design and easy installation, this lug is ideal for use in demanding environments where high voltage and temperature ratings are required.
Top product features:
- Two-Hole Compression Lug provides a secure crimp termination for stranded copper wire.
- The lug has a straight tongue angle for easy installation.
- The lug has an inspection hole for visual verification of wire connection.
Top product applications:
- Bus Bar Connections
- Railway Applications
- High Voltage Power Distribution Systems
Compression Lug, Barrel Size Standard, Color Code Blue, Die Code 19, Tongue Angle Straight, Tongue Width 0.96 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 350 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, Inspection Hole Yes, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.90
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.30
Product info last updated on March 14, 2026 4:23pm UTC
Category: Electrical Connectors
