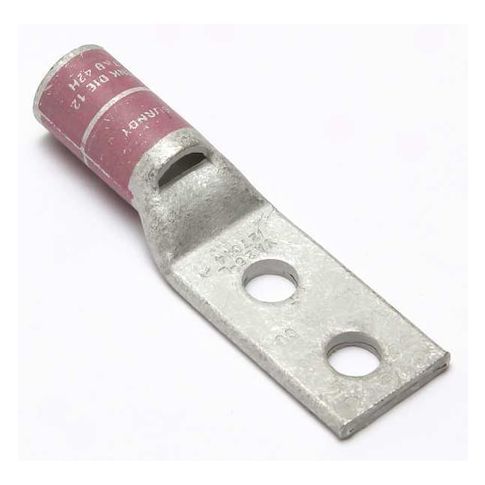

Two-Hole Compression Lug, 1/0 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Pink MPN:YA25L2TC14
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4699274
Two-Hole Compression Lug, 1/0 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Pink
The Burndy Two-Hole Compression Lug is a reliable and efficient solution for connecting copper conductors to 1/4 inch studs. Its standard barrel design and straight tongue angle ensure a secure crimp termination, while the pink color code makes it easy to identify in high-voltage applications. Certified to CSA and UL 486A-486B standards, this lug is suitable for use in a variety of industries, including electrical and industrial. With a maximum operating temperature of 194°F and voltage rating of 35kV, it's perfect for applications such as electrical panels, switchgear, and power distribution systems.
Top product features:
- Two-Hole Compression Lug provides crimp termination for stranded copper wire.
- Has a straight tongue angle for easy installation.
- Inspection holes allow for visual verification of wire connection.
Top product applications:
- Busbar termination
- Electrical distribution panels
- Motor control systems
Compression Lug, Barrel Size Standard, Color Code Pink, Die Code 12, 348, Tongue Angle Straight, Tongue Width 0.75 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, Inspection Hole Yes, Hole Center to Center 0.625 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 0.70
- Package Height: 0.50
- Package Weight: 0.01
Product info last updated on April 6, 2026 11:15am UTC
Category: Electrical Connectors
