One-Hole Compression Lug, 3 AWG Max, 5/16 in Stud, Standard Barrel, Copper, White MPN:YA3CLB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4697357

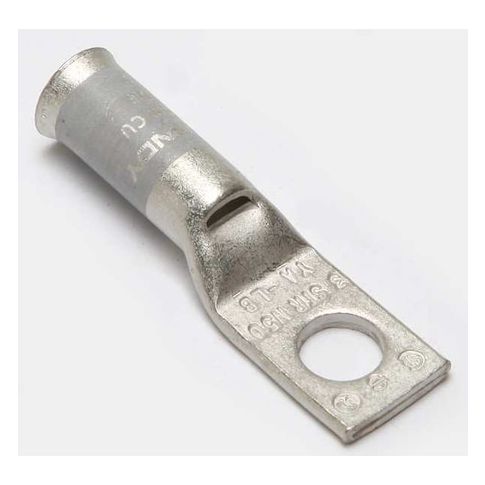

One-Hole Compression Lug, 3 AWG Max, 5/16 in Stud, Standard Barrel, Copper, White
The One-Hole Compression Lug from Burndy is a reliable and efficient solution for connecting stranded copper wires. With a maximum operating temperature of 194°F and a maximum voltage of 35kV, this lug is suitable for a wide range of applications, including electrical panels, switchgear, and motor control systems. Its standard barrel size and white color coding make it easy to identify and install. The lug's copper construction and tin contact finish ensure a secure and durable connection. Ideal for use with 3 AWG and 4 AWG wires, this lug is a versatile and essential component for electrical engineers and contractors.
Top product features:
- Compresses stranded copper wire up to 3 AWG
- Connects to a 5/16 in stud
- Has a standard barrel design with a belled, straight contact
Top product applications:
- Wire Harness Assembly
- Electrical Panel Connections
- Bus Bar Connections
Compression Lug, Barrel Size Standard, Color Code White, Die Code 1,016, For Stud Size 5/16 in, For Stranded Copper Wire Size - Maximum 3 AWG, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Standards CSA Certified, UL 486A-486B, UL Listed, Connector Type Belled Straight Barrel, Contact Finish Tin, For Wire Size 3 AWG, 4 AWG, For Wire Type Stranded
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 0.50
- Package Height: 0.30
- Package Weight: 0.01
Product info last updated on February 9, 2026 8:35pm UTC
Category: Electrical Connectors
