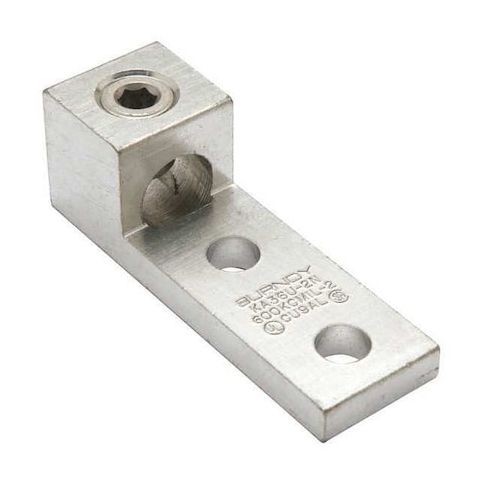

Mechanical Lug, 600 kcmil Max, 1 Conductor, 2 Hole, 1/2 in Stud, Aluminum MPN:KA36U2N
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4697122
Mechanical Lug, 600 kcmil Max, 1 Conductor, 2 Hole, 1/2 in Stud, Aluminum
The Burndy Mechanical Lug is a reliable and efficient connector for aluminum and copper conductors. Suitable for stranded copper wire sizes from 2 AWG to 600 kcmil, it provides a secure connection in a variety of applications, including electrical distribution, transmission, and power generation. The lug's aluminum body and hex socket head ensure durability and ease of use, withstanding temperatures up to 194°F and voltages up to 600V. Perfect for use in commercial and industrial settings, the Burndy Mechanical Lug is a trusted choice for electrical professionals seeking a reliable and long-lasting connection.
Top product features:
- Mechanical Lug connects a single aluminum or copper conductor to a 1/2 inch stud.
- Mechanical Connector accommodates stranded copper wire sizes from 2 AWG to 600 kcmil.
- Hex socket head style allows for easy installation and secure termination.
Top product applications:
- Electrical Panel Wiring
- Busbar Connections
- Low-Voltage Power Distribution
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 600 kcmil, For Stud Size 1/2 in, Head Style Hex Socket, Number of Holes 2, Hole Diameter 0.56 in, Hole Spacing 1.75 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 3.22 in, Tongue Width 1.52 in, Tongue Thickness 0.44 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 1.60
- Package Height: 1.60
- Package Weight: 0.40
Product info last updated on February 3, 2026 6:54pm UTC
Category: Electrical Connectors
