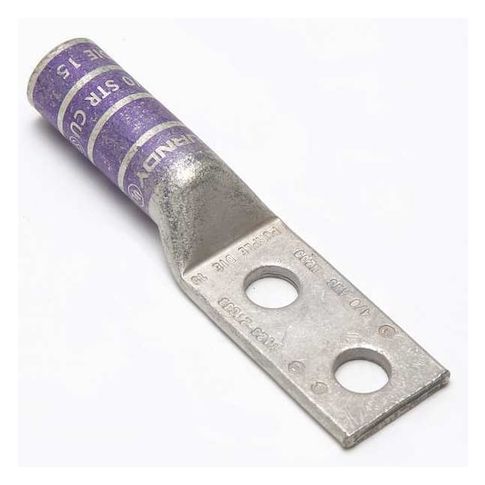

Two-Hole Compression Lug, 4/0 AWG Max, 3/8 in Stud, Long Barrel, Copper, Purple MPN:YA282TC38
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4696185
Two-Hole Compression Lug, 4/0 AWG Max, 3/8 in Stud, Long Barrel, Copper, Purple
The Burndy Two-Hole Compression Lug is a versatile and reliable solution for electrical connections. Designed for use with copper conductors, this lug features a long barrel and straight tongue angle, making it ideal for applications where space is limited. With a maximum operating temperature of 194°F and a voltage rating of 35kV, this lug is suitable for a wide range of applications, including industrial and commercial electrical systems. Its CSA certification and UL listing ensure compliance with industry standards, providing peace of mind for electrical professionals and engineers. Perfect for use in high-voltage connections, this lug is a must-have for any electrical project.
Top product features:
- Two-Hole Compression Lug for copper wire up to 4/0 AWG
- Has a long barrel for easy wire insertion
- Meets CSA and UL 486A-486B standards for safe operation up to 35 kV and 194°F
Top product applications:
- Electrical Panel Installation
- Busbar connections in electrical panels
- Medium voltage power distribution systems
Compression Lug, Barrel Size Long, Color Code Purple, Die Code 15, Tongue Angle Straight, Tongue Width 1.02 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 4/0 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, Inspection Hole No, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 0.90
- Package Height: 0.80
- Package Weight: 0.10
Product info last updated on February 5, 2026 3:42am UTC
Category: Electrical Connectors
