One-Hole Compression Lug, 500 kcmil Max, 1/2 in Stud, Standard Barrel, Copper, Brown MPN:YA34L6
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4696151

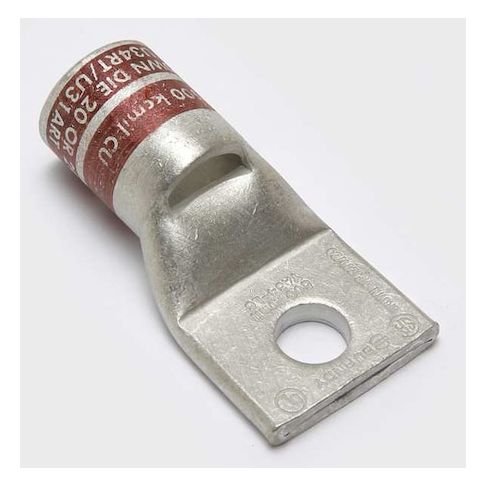

One-Hole Compression Lug, 500 kcmil Max, 1/2 in Stud, Standard Barrel, Copper, Brown
This one-hole compression lug from Burndy is designed for use with 500 kcmil stranded copper wire, ensuring secure and reliable connections in a variety of electrical applications. The standard barrel lug features a straight tongue and a maximum operating temperature of 194°F, making it suitable for use in high-voltage systems up to 35 kV. CSA certified and UL listed, this lug meets industry standards for safety and performance. Its compact design and copper construction make it ideal for use in electrical panels, switchgear, and other high-voltage equipment, providing a reliable and long-lasting connection.
Top product features:
- One-Hole Compression Lug provides a secure termination for stranded copper wire up to 500 kcmil.
- Compression Lug is designed for use with 1/2 in studs.
- Copper construction allows for high-temperature operation up to 194 Degrees F.
Top product applications:
- Power Distribution Systems
- Industrial Electrical Panels
- Medium Voltage Transmission Lines
Compression Lug, Barrel Size Standard, Color Code Brown, Die Code 20, 299, Tongue Angle Straight, Tongue Width 1.55 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 500 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, UL 467
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 1.40
- Package Height: 1.10
- Package Weight: 0.25
Product info last updated on March 11, 2026 9:22am UTC
Category: Electrical Connectors
