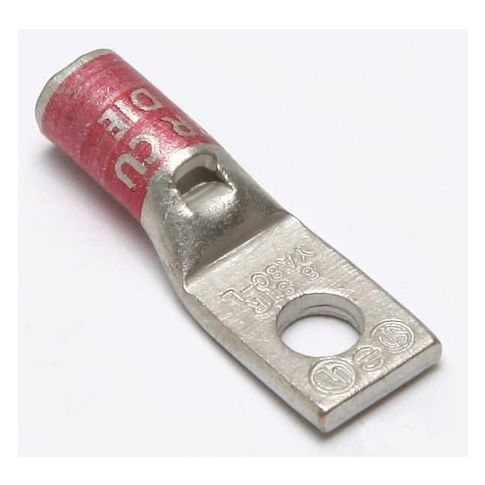

One-Hole Compression Lug, 8 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Red MPN:YA8CL1BOX
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4695862
One-Hole Compression Lug, 8 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Red
The Burndy One-Hole Compression Lug is a reliable and efficient solution for electrical connections. Designed for use with stranded copper wire up to 8 AWG, this lug features a standard barrel and straight tongue angle for secure crimping. With a maximum operating temperature of 194°F and voltage rating of 35 kV, it's suitable for a variety of applications, including power distribution and industrial electrical systems. CSA certified and UL listed, this lug provides assurance of quality and safety. Its compact size and ease of use make it an ideal choice for electricians and engineers seeking a reliable and efficient connection solution.
Top product features:
- One-Hole Compression Lug features a standard barrel design.
- The lug is capable of terminating stranded copper wire up to 8 AWG.
- The lug is rated for a maximum operating temperature of 194 Degrees F.
Top product applications:
- Industrial Electrical Wiring
- Electrical Panel Assembly
- Heavy-Duty Power Distribution
Compression Lug, Barrel Size Standard, Color Code Red, Die Code 49, Tongue Angle Straight, Tongue Width 0.44 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 8 AWG, For Stranded Copper Wire Size - Maximum 8 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 1
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.30
- Package Width: 0.40
- Package Height: 0.30
- Package Weight: 0.01
