Mechanical Lug, 250 kcmil Max, 2 Conductor, 5/8 in Stud, Aluminum MPN:AMS250
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4695591
Mechanical Lug, 250 kcmil Max, 2 Conductor, 5/8 in Stud, Aluminum

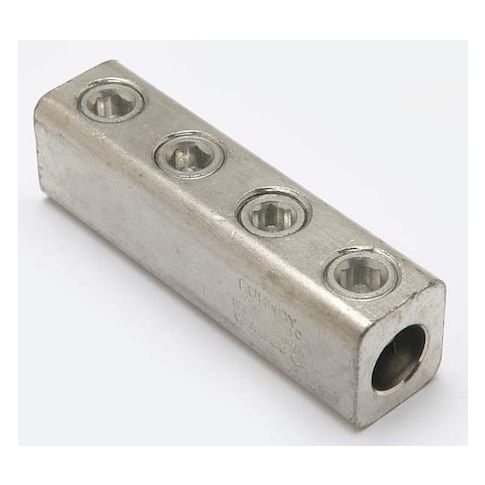

The Burndy Mechanical Lug is a reliable and efficient connector for aluminum and copper conductors. Suitable for stranded copper wire sizes from 6 AWG to 250 kcmil, this lug provides a secure termination for a wide range of applications. Its hex socket head style allows for easy installation and removal. Ideal for use in electrical distribution systems, the Mechanical Lug can withstand temperatures up to 194°F and voltages up to 600V. Its compact design and lightweight construction make it a great choice for industrial and commercial settings, including power generation, transmission, and distribution systems.
Top product features:
- Connects two conductors together
- Accepts stranded copper wire sizes up to 250 kcmil
- Suitable for operating temperatures up to 194 Degrees F
Top product applications:
- Utility Wiring
- Busbar Connections
- High-Voltage Power Distribution
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, For Stud Size 5/8 in, Head Style Hex Socket, Number of Holes Not Applicable, Hole Diameter Not Applicable, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 2, Number of Terminations 4, Tongue Width Not Applicable, Tongue Thickness Not Applicable
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 1.70
- Package Height: 1.10
- Package Weight: 0.35
Product info last updated on February 20, 2026 10:32am UTC
Category: Electrical Connectors
