Two-Hole Compression Lug, 4/0 AWG Max, 1/2 in Stud, Standard Barrel, Aluminum, White MPN:YA28A5
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4695564

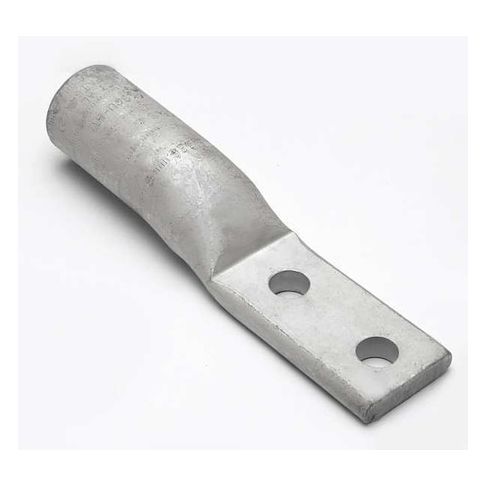

Two-Hole Compression Lug, 4/0 AWG Max, 1/2 in Stud, Standard Barrel, Aluminum, White
The Burndy Two-Hole Compression Lug is a reliable and efficient solution for connecting aluminum and copper conductors in various applications. With a maximum operating temperature of 194°F and a maximum voltage of 35kV, this lug is suitable for a range of uses, including high-voltage systems and industrial power distribution. Its standard barrel design and straight tongue angle ensure easy installation and secure connections. This lug is CSA certified and UL listed, meeting industry standards for safety and performance. Ideal for use in power generation, transmission, and distribution, as well as in industrial and commercial settings.
Top product features:
- Two-Hole Compression Lug has a standard barrel design.
- The product is made of aluminum, providing a lightweight material for electrical applications.
- The lug features a crimp termination style, allowing for secure connections to stranded copper wire.
Top product applications:
- Bus Electrical Systems
- Power Generation and Distribution Systems
- Industrial Control Panel Wiring
Compression Lug, Barrel Size Standard, Color Code White, Die Code 298, Tongue Angle Straight, Tongue Width 1.17 in, For Conductor Material Aluminum, Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 4/0 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, Inspection Hole No, Hole Center to Center 1.75 in, Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.70
- Package Width: 1.20
- Package Height: 1.00
- Package Weight: 0.15
Product info last updated on February 17, 2026 4:08am UTC
Category: Electrical Connectors
