One-Hole Compression Lug, 8 AWG Max, #8, #10 Stud, Standard Barrel, Copper, Red MPN:YA8CLBOX
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4695485

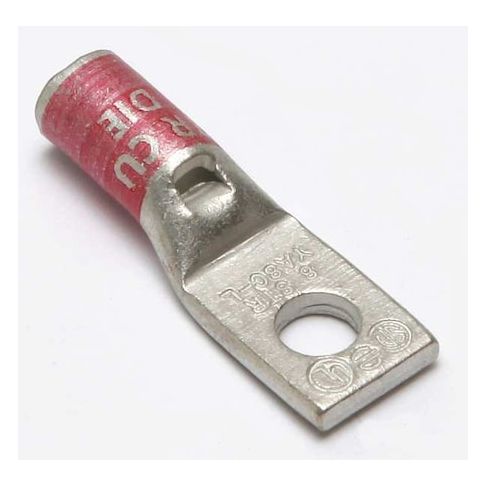

One-Hole Compression Lug, 8 AWG Max, #8, #10 Stud, Standard Barrel, Copper, Red
The Burndy One-Hole Compression Lug is a reliable and efficient termination solution for copper conductors. Suitable for stranded copper wire sizes from 8 AWG to 8 AWG, this lug features a standard barrel and straight tongue angle, making it easy to install and inspect. Certified to CSA and UL 486A-486B standards, it can withstand operating temperatures up to 194°F and voltages up to 35 kV. Ideal for a variety of applications, including electrical panel and distribution equipment, the Burndy One-Hole Compression Lug provides a secure and long-lasting connection, ensuring the integrity of your electrical system.
Top product features:
- For Conductor Material Copper
- Termination Style Crimp
- Maximum Operating Temperature 194 Degrees F
Top product applications:
- Electrical Panel Connectors
- Busbar Connectors
- Power Distribution Boxes
Compression Lug, Barrel Size Standard, Color Code Red, Die Code 49, Tongue Angle Straight, Tongue Width 0.41 in, For Conductor Material Copper, For Stud Size #10, #8, For Stranded Copper Wire Size - Minimum 8 AWG, For Stranded Copper Wire Size - Maximum 8 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 1
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.20
- Package Width: 0.50
- Package Height: 0.20
- Package Weight: 0.01
Product info last updated on February 9, 2026 10:55am UTC
Category: Electrical Connectors
