Two-Hole Compression Lug, 2/0 AWG Max, 3/8 in Stud, Standard Barrel, Copper, Black MPN:YA26L2TC38
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4694767

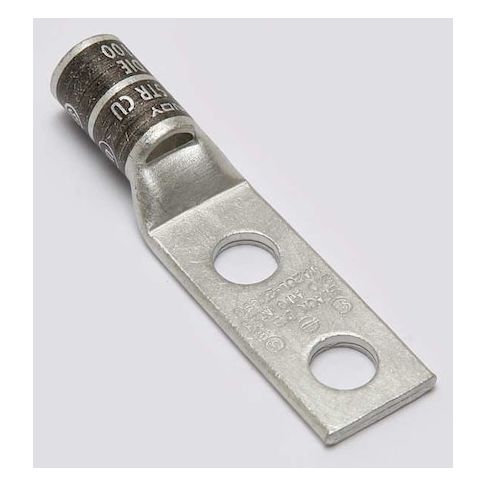

Two-Hole Compression Lug, 2/0 AWG Max, 3/8 in Stud, Standard Barrel, Copper, Black
The Burndy Two-Hole Compression Lug is a reliable and efficient termination solution for copper stranded wire up to 2/0 AWG. Featuring a standard barrel size and straight tongue angle, this lug provides a secure crimp connection for a wide range of applications, including electrical distribution and transmission systems. With a maximum operating temperature of 194°F and voltage rating of 35kV, it's ideal for use in high-performance electrical systems. The lug's copper construction and CSA certification ensure durability and safety, making it a trusted choice for electrical contractors and engineers.
Top product features:
- Two-Hole Compression Lug design allows for secure connection of two conductors.
- Compression Lug features a standard barrel size for compatibility with a wide range of applications.
- Copper material provides high electrical conductivity and durability.
Top product applications:
- Wire Harness Assembly
- Busbar Connection
- Electrical Panel Installation
Compression Lug, Barrel Size Standard, Color Code Black, Die Code 13, Tongue Angle Straight, Tongue Width 0.83 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 2/0 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, Inspection Hole Yes, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 1.00
- Package Height: 0.60
- Package Weight: 0.01
Product info last updated on April 25, 2026 12:45pm UTC
Category: Electrical Connectors
