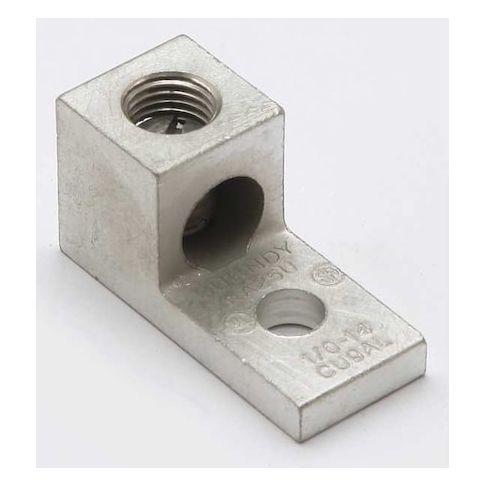

Mechanical Lug, 1 Conductor, 1 Hole, 1/4 in Stud, Aluminum MPN:KA25U
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4694715
Mechanical Lug, 1 Conductor, 1 Hole, 1/4 in Stud, Aluminum
The Burndy Mechanical Lug is a reliable and efficient connector for aluminum and copper conductors. Suitable for stranded copper wire sizes from 14 AWG to 1/0 AWG, it features a slotted head style and a sturdy aluminum body. This connector is ideal for a variety of applications, including electrical panels, switchgear, and control systems. Its compact design and high-temperature rating make it a versatile choice for demanding environments. With its ease of installation and secure connection, the Burndy Mechanical Lug ensures a reliable and efficient electrical connection.
Top product features:
- Connects stranded copper wire sizes 14 AWG to 1/0 AWG to a 1/4 inch stud
- Compatible with aluminum and copper conductor materials
- Operates at a maximum voltage of 600 V and temperature of 194 Degrees F
Top product applications:
- Automotive wiring and electrical systems
- Construction and industrial electrical installations
- Marine electrical systems and boat wiring
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, For Stud Size 1/4 in, Head Style Slotted, Number of Holes 1, Hole Diameter 0.27 in, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.81 in, Tongue Width 0.63 in, Tongue Thickness 0.19 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.60
- Package Width: 0.80
- Package Height: 0.60
- Package Weight: 0.10
Product info last updated on February 4, 2026 1:14pm UTC
Category: Electrical Connectors
