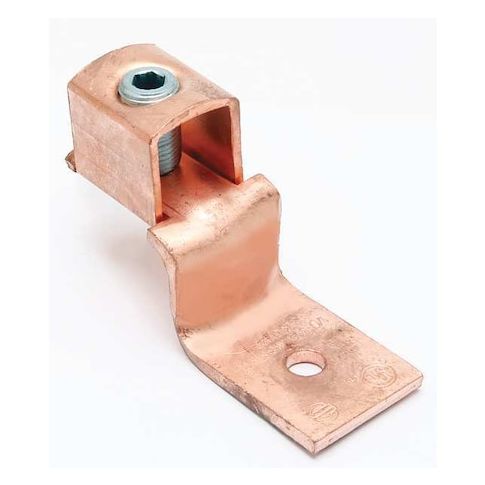

Mechanical Lug, 4/0 AWG Max, 1 Conductor, 1 Hole, 5/16 in Stud, Copper MPN:KLU225
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4694191
Mechanical Lug, 4/0 AWG Max, 1 Conductor, 1 Hole, 5/16 in Stud, Copper
The Burndy Mechanical Lug is a reliable and efficient connector for stranded copper wire applications. Suitable for use with wire sizes from 2 AWG to 4/0 AWG, this lug features a sturdy 5/16 in copper stud and a hex head design for easy installation. With a maximum operating temperature of 194°F and a voltage rating of 600 V, this lug is ideal for use in a variety of applications, including electrical distribution, industrial control, and telecommunications. Its compact size and lightweight design make it easy to integrate into existing systems, reducing installation time and increasing productivity.
Top product features:
- Mechanical lug provides a secure termination point for stranded copper wire up to 4/0 AWG.
- Copper body material provides good electrical conductivity and corrosion resistance.
- Hex head design allows for easy installation and tightening of the lug.
Top product applications:
- Power Distribution Systems
- Busbar Connections
- Electrical Panel Installations
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, For Stud Size 5/16 in, Head Style Hex Head, Number of Holes 1, Hole Diameter 0.34 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 1 in, Tongue Thickness 0.12 in
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.70
- Package Width: 1.70
- Package Height: 1.00
- Package Weight: 0.20
Product info last updated on March 30, 2026 11:14am UTC
Category: Electrical Connectors
