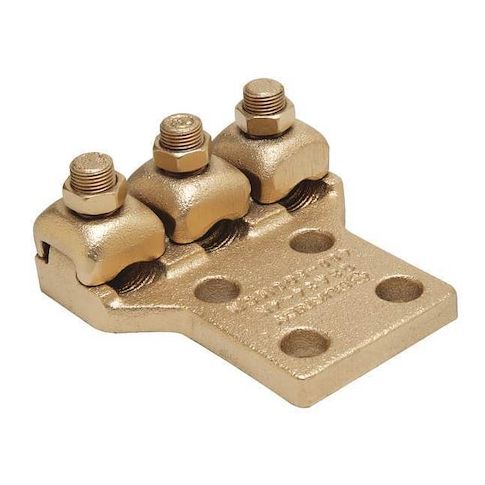

Mechanical Lug, 500 kcmil Max, 3 Conductor, 4 Hole, 1/2 in Stud, Copper MPN:Q3A344N
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4693972
Mechanical Lug, 500 kcmil Max, 3 Conductor, 4 Hole, 1/2 in Stud, Copper
The Burndy Mechanical Lug is a reliable and efficient connector designed for use in a variety of applications, including electrical distribution and transmission systems. With a maximum operating temperature of 194°F and a maximum voltage of 600V, it can withstand harsh conditions. The lug features a copper body and a hex head, making it easy to install and secure. It is suitable for stranded copper wire sizes between 400 kcmil and 500 kcmil, and is ideal for use in commercial and industrial settings, such as construction sites, factories, and power plants. Its durability and ease of use make it a valuable addition to any electrical system.
Top product features:
- For Stranded Copper Wire Size Minimum 400 kcmil
- For Stud Size 1/2 in
- Maximum Operating Temperature 194 Degrees F
Top product applications:
- Power Distribution Panel
- Bus Bar Connection
- Medium Voltage Transmission Line
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 400 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, For Stud Size 1/2 in, Head Style Hex Head, Number of Holes 4, Hole Diameter 0.56 in, Hole Spacing 1.75 in, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 3, Number of Terminations 3, Tongue Length 3.13 in, Tongue Width 3 in, Tongue Thickness 0.38 in, Connector Type Terminal
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 4.50
- Package Height: 1.80
- Package Weight: 3.10
Product info last updated on February 3, 2026 9:08pm UTC
Category: Electrical Connectors
