Two-Hole Compression Lug, 3/0 AWG Max, 1/2 in Stud, Long Barrel, Copper, Orange MPN:YA272N
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4693771

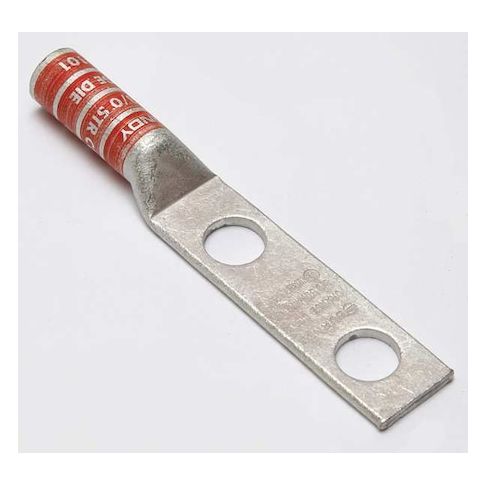

Two-Hole Compression Lug, 3/0 AWG Max, 1/2 in Stud, Long Barrel, Copper, Orange
The Burndy Two-Hole Compression Lug is a reliable and efficient solution for connecting stranded copper wire to 1/2 inch studs. Designed for use in a variety of applications, including electrical and industrial settings, this lug features a long barrel and straight tongue angle for secure crimping. With a maximum operating temperature of 194°F and a maximum voltage rating of 35kV, it provides durable performance in demanding conditions. CSA certified and UL listed, this lug meets industry standards for safety and quality. It's ideal for use in commercial and industrial settings, including construction, manufacturing, and electrical distribution.
Top product features:
- Two-Hole Compression Lug for stranded copper wire up to 3/0 AWG
- Copper construction for high temperature and voltage applications
- Termination style crimp for secure connection
Top product applications:
- Busbar termination
- Cable harness assembly
- Power distribution system
Compression Lug, Barrel Size Long, Color Code Orange, Die Code 14, Tongue Angle Straight, Tongue Width 0.91 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 3/0 AWG, For Stranded Copper Wire Size - Maximum 3/0 AWG, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 1.00
- Package Height: 0.40
- Package Weight: 0.15
Product info last updated on February 27, 2026 10:28pm UTC
Category: Electrical Connectors
