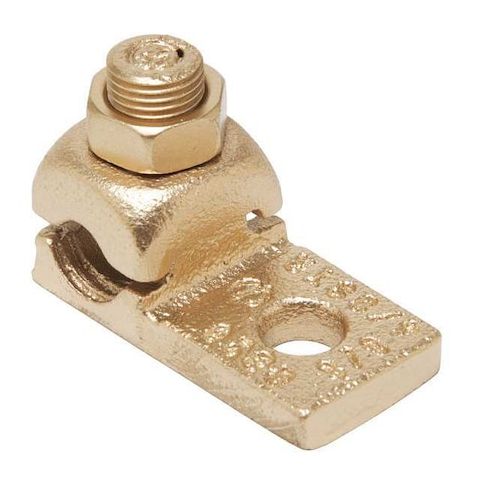

Mechanical Lug, 2/0 AWG Max, 1 Conductor, 1 Hole, 3/8 in Stud, Copper MPN:QA26B
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4691583
Mechanical Lug, 2/0 AWG Max, 1 Conductor, 1 Hole, 3/8 in Stud, Copper
The Burndy Mechanical Lug is a reliable and efficient connector for stranded copper wire. Suitable for use in a variety of applications, including electrical and industrial settings, this lug provides secure and durable connections. Its copper body and 3/8 in stud ensure excellent conductivity and strength, while its hex head design makes installation easy and precise. With a maximum operating temperature of 194°F and a voltage rating of 600V, this connector is ideal for use in high-temperature and high-voltage applications. Its compact size and lightweight design also make it easy to handle and store.
Top product features:
- Connects stranded copper wire with a minimum size of 1/0 AWG and a maximum size of 2/0 AWG.
- Secures to a 3/8 in stud with a hex head design.
- Operates at a maximum temperature of 194 Degrees F and a maximum voltage of 600 V.
Top product applications:
- Bus bar connections
- Electrical panel connections
- Circuit breaker connections
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, For Stud Size 3/8 in, Head Style Hex Head, Number of Holes 1, Hole Diameter 0.41 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.94 in, Tongue Width 0.81 in, Tongue Thickness 0.22 in, Connector Type Terminal
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.10
- Package Width: 1.00
- Package Height: 1.10
- Package Weight: 0.20
Product info last updated on February 10, 2026 6:43pm UTC
Category: Electrical Connectors
