Compression Adapter, 750 kcmil Max, Standard Barrel, Aluminum, Yellow MPN:AYP750
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4691531

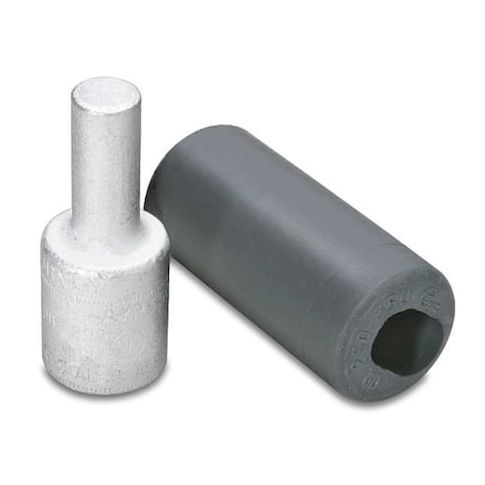

Compression Adapter, 750 kcmil Max, Standard Barrel, Aluminum, Yellow
The Burndy Compression Adapter is a reliable and efficient tool for connecting aluminum and copper conductors. With a maximum capacity of 750 kcmil, it can handle a wide range of wire sizes, making it ideal for heavy-duty applications. The adapter's aluminum construction and tin-plated contact ensure a secure and durable connection. Its compact design and yellow color make it easy to identify and handle. Suitable for use in electrical systems up to 35 kV, this adapter is perfect for utility companies, contractors, and electrical engineers working on high-voltage projects. Its versatility and reliability make it a valuable addition to any electrical toolkit.
Top product features:
- Compression to crimp design for secure connections
- Tin contact finish for corrosion resistance
- Three crimps for reliable wire insulation and conductor connection
Top product applications:
- Industrial Electrical Connections
- Busbar connections in electrical substations
- High-voltage power distribution systems
Compression Pin Terminal, Connection Orientation Straight, Die Code 936, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 750 kcmil, For Stranded Copper Wire Size - Maximum 750 kcmil, Insulation Material Rubber, Maximum Voltage 35 kV, Number of Crimps 3, Pin Diameter 0.813 in, Pin Equivalent Wire Size 500 kcmil, Pin Length 1.76 in, Contact Finish Tin, Contact Material Aluminum, Barrel Diameter 1.46 in, Barrel Length 1.59 in, Color Code Yellow
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 3.30
- Package Height: 1.60
- Package Weight: 0.45
Product info last updated on March 20, 2026 9:23pm UTC
Category: Electrical Connectors
