Mechanical Lug, 4/0 AWG Max, 1 Conductor, 1 Hole, 1/2 in Stud, Copper MPN:QDA28
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4690025

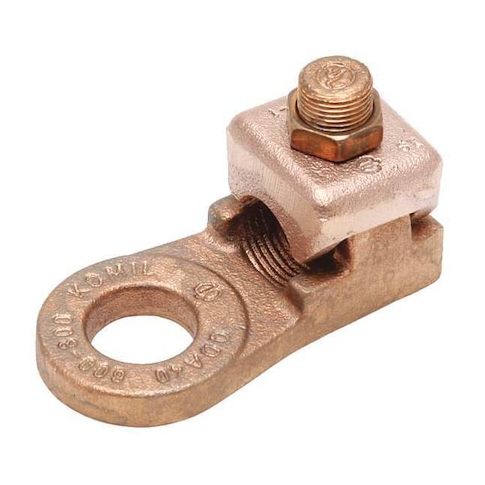

Mechanical Lug, 4/0 AWG Max, 1 Conductor, 1 Hole, 1/2 in Stud, Copper
The Burndy Mechanical Lug is a reliable and efficient connector for copper stranded wires. Designed for use with conductors up to 4/0 AWG, this lug features a hex head and a single hole for easy installation. With a maximum operating temperature of 194°F and a voltage rating of 600V, it's suitable for a wide range of applications, including electrical panels, switchgear, and motor control centers. Its copper construction ensures excellent conductivity and durability. Ideal for use in commercial and industrial settings, the Burndy Mechanical Lug is a cost-effective and convenient solution for connecting copper wires.
Top product features:
- Mechanical Lug design allows for secure connection to a 1/2 in stud
- Copper body and tongue provide excellent electrical conductivity
- Maximum operating temperature of 194 Degrees F supports high-temperature applications
Top product applications:
- Electrical Panel Installation
- Busbar Connection
- Motor Connection
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 3/0 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, For Stud Size 1/2 in, Head Style Hex Head, Number of Holes 1, Hole Diameter 0.56 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 1.25 in, Tongue Thickness 0.31 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.90
- Package Height: 4.70
- Package Weight: 3.55
Product info last updated on February 24, 2026 9:40am UTC
Category: Electrical Connectors
