Two-Hole Compression Lug, 400 kcmil Max, 1/2 in Stud, Long Barrel, Copper, Blue MPN:YA322N
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4687417

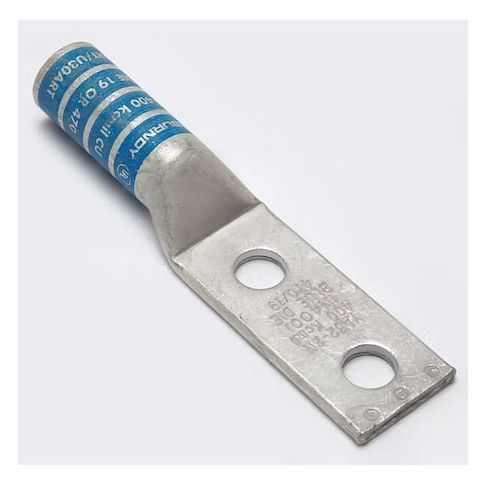

Two-Hole Compression Lug, 400 kcmil Max, 1/2 in Stud, Long Barrel, Copper, Blue
This Two-Hole Compression Lug from Burndy is a reliable solution for electrical connections. Designed for use with stranded copper wire sizes up to 400 kcmil, it features a long barrel and straight tongue angle for secure crimping. The lug is made from copper and is CSA certified and UL listed for safety and performance. Suitable for high-voltage applications up to 35 kV, it is ideal for use in industrial and commercial settings. Its compact size and easy installation make it a convenient choice for electrical contractors and engineers working on projects that require efficient and reliable connections.
Top product features:
- Two-Hole design allows for secure and reliable connection of two conductors.
- Long barrel design provides increased flexibility and ease of use.
- Copper construction ensures high conductivity and resistance to corrosion.
Top product applications:
- Busbar connections
- Electrical distribution systems
- High-voltage transmission lines
Compression Lug, Barrel Size Long, Color Code Blue, Die Code 19, Tongue Angle Straight, Tongue Width 1.4 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 400 kcmil, For Stranded Copper Wire Size - Maximum 400 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.90
- Package Width: 1.50
- Package Height: 1.00
- Package Weight: 0.50
Product info last updated on February 13, 2026 1:24pm UTC
Category: Electrical Connectors
