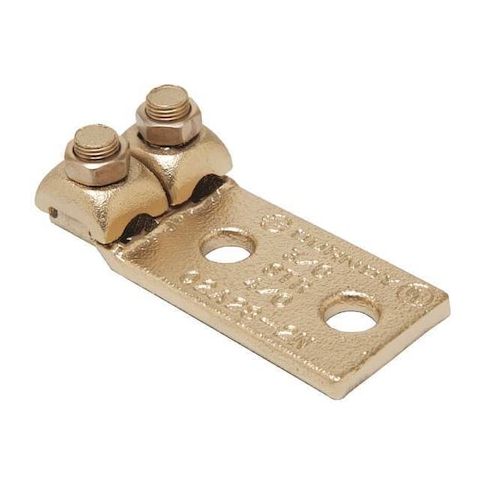

Mechanical Lug, 2/0 AWG Max, 2 Conductor, 2 Hole, 1/2 in Stud, Copper MPN:Q2A262N
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4687304
Mechanical Lug, 2/0 AWG Max, 2 Conductor, 2 Hole, 1/2 in Stud, Copper
The Burndy Mechanical Lug is a reliable and durable connector for stranded copper wire applications. Suitable for use with 1/0 AWG to 2/0 AWG copper wire, this lug features a hex head design and two holes for secure attachment to a 1/2 inch stud. Its copper body ensures excellent conductivity and resistance to corrosion, while its operating temperature range of up to 194°F makes it ideal for a variety of applications, including electrical distribution, industrial control systems, and renewable energy installations. This lug is a versatile and long-lasting solution for connecting copper wires in demanding environments.
Top product features:
- For Conductor Material Copper, For Stranded Copper Wire Size Minimum 1/0 AWG, For Stranded Copper Wire Size Maximum 2/0 AWG
- Connects two stranded copper wires with a minimum size of 1/0 AWG and a maximum size of 2/0 AWG
- Has a stud size of 1/2 in and a hex head design for easy installation
Top product applications:
- Electric Vehicle Charging Station
- Industrial Control Panel Assembly
- Heavy-Duty Trailer Wiring Harness
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, For Stud Size 1/2 in, Head Style Hex Head, Number of Holes 2, Hole Diameter 0.56 in, Hole Spacing 0.75 in, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 2, Number of Terminations 2, Tongue Length 3.12 in, Tongue Width 1.63 in, Tongue Thickness 0.22 in, Connector Type Terminal
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 2.00
- Package Height: 1.10
- Package Weight: 0.75
Product info last updated on February 11, 2026 10:06am UTC
Category: Electrical Connectors
