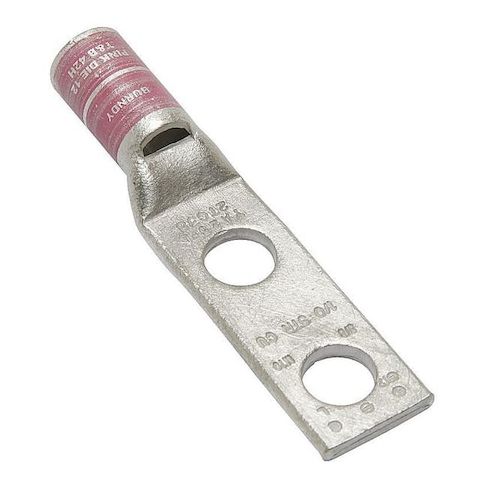

Two-Hole Compression Lug, 1/0 AWG Max, 3/8 in Stud, Standard Barrel, Copper, Pink MPN:YA25L2TC38
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4686814
Two-Hole Compression Lug, 1/0 AWG Max, 3/8 in Stud, Standard Barrel, Copper, Pink
This Two-Hole Compression Lug from Burndy is a reliable and efficient connection solution for copper conductors in a variety of applications. Designed for 3/8 inch studs, it accommodates stranded copper wire sizes from 1/0 AWG and features a standard barrel size and straight tongue angle. With a maximum operating temperature of 194°F and a voltage rating of 35 kV AC, it meets the demands of high-performance electrical systems. Suitable for use in commercial and industrial settings, this lug provides a secure and long-lasting connection, ensuring the integrity of electrical circuits and reducing the risk of electrical shock or equipment failure.
Top product features:
- Two-Hole Lug Compression Connector provides a crimp termination style for secure connections.
- It is designed for use with stranded copper wire sizes up to 1/0 AWG for reliable conductivity.
- The connector has a standard barrel size and straight tongue angle for easy installation.
Top product applications:
- Power Distribution Panel
- Busbar Connections
- Generator Connections
Two-Hole Lug Compression Connector, Barrel Size Standard, Color Code Pink, Die Code 12, 348, Tongue Angle Straight, Tongue Width 0.75 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, Inspection Hole Yes, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 0.70
- Package Height: 0.50
- Package Weight: 0.10
Product info last updated on February 28, 2026 7:24pm UTC
Category: Electrical Connectors
