Two-Hole Compression Lug, 2 AWG Max, 3/8 in Stud, Standard Barrel, Copper, Brown MPN:YA2CL2TC38
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4686726

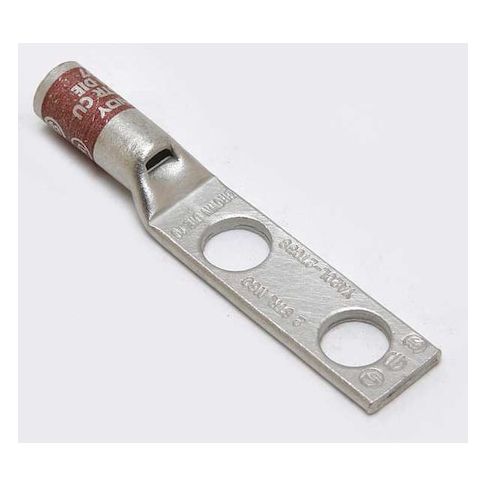

Two-Hole Compression Lug, 2 AWG Max, 3/8 in Stud, Standard Barrel, Copper, Brown
This two-hole compression lug is designed for use with stranded copper wire up to 2 AWG and features a 3/8 in stud. The copper construction ensures high conductivity and durability. The standard barrel design and straight tongue angle facilitate easy installation. Ideal for applications in the electrical and industrial sectors, this lug is certified to CSA and UL 486A-486B standards, ensuring compliance with industry regulations. Its compact size and lightweight design make it suitable for a range of applications, including power distribution, control systems, and industrial automation. The lug is also suitable for use in harsh environments up to 194°F.
Top product features:
- Two-Hole Lug Compression Connector has a crimp termination style.
- Has a tongue angle of straight.
- Accepts stranded copper wire up to 2 AWG.
Top product applications:
- Power Distribution Systems
- Electrical Panel Installations
- Switchgear and Circuit Breaker Applications
Two-Hole Lug Compression Connector, Barrel Size Standard, Color Code Brown, Die Code 10, Tongue Angle Straight, Tongue Width 0.6 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, Inspection Hole Yes, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 0.60
- Package Height: 0.20
- Package Weight: 0.01
Product info last updated on February 28, 2026 4:59pm UTC
Category: Electrical Connectors
